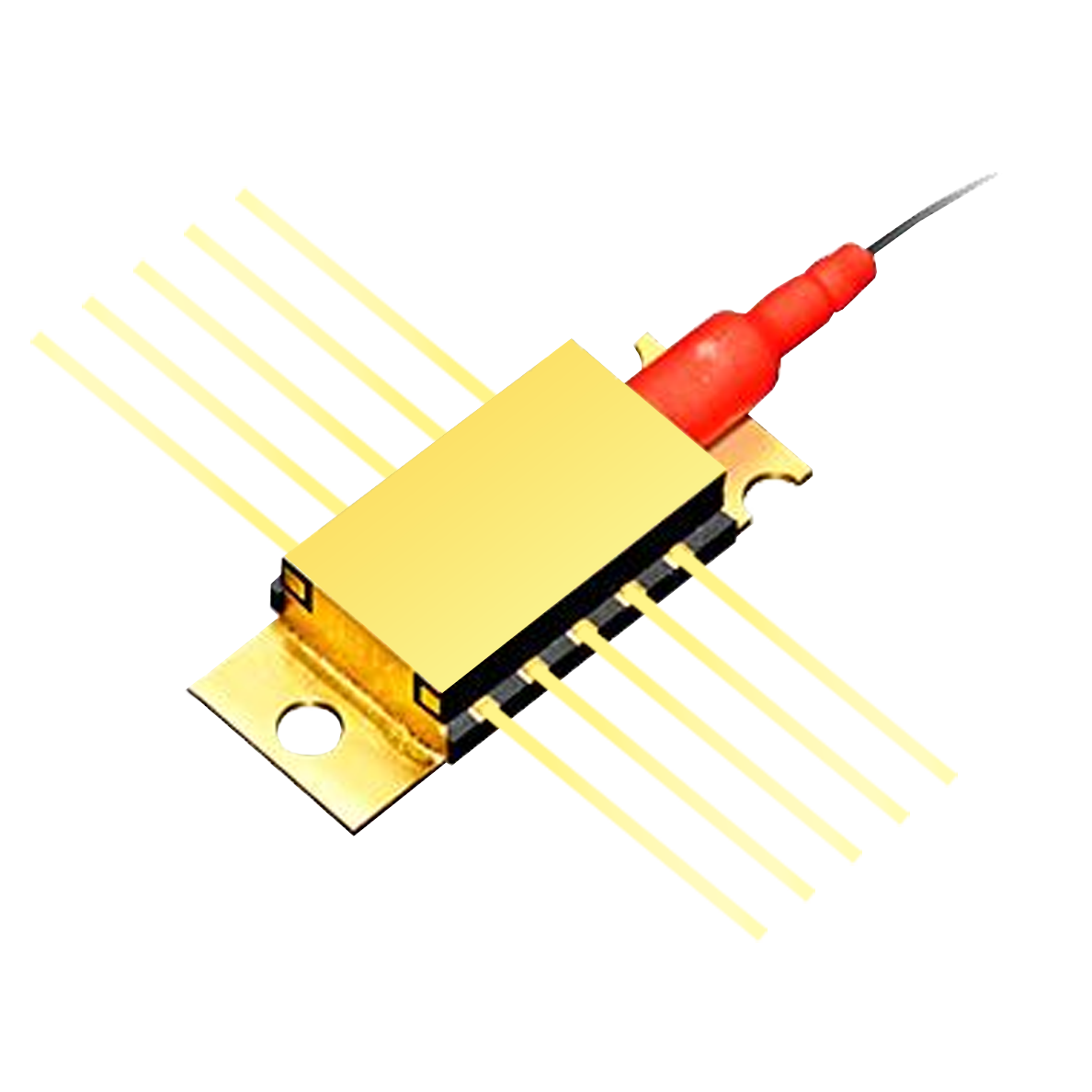

The Optilab DFB-1030-PM-100-CW is a stabilized high power laser module designed as a light source for pulsed narrow bandwidth fiber laser and direct frequency conversion applications. A distributed feedback grating(DFB) is located in the laser cavity results in the wavelength stabilization within couple of round trips. The laser chip and package are optimized for subnanosecond pulse operation. Processes and techniques of coupling the fiber to the laser allow high peak output powers that are very stable with both time and temperature. Contact Optilab for more information.

Features:

• Center Wavelength: 1030±2 nm
• High Output CW and Pulse Power:
200 mW and 800 mW, Respectively
• Short Pulse <500 ps Modulation
• Lateral and Longitudinal Single Mode
• PM SM Optical Fiber Available
• Internal Thermoelectric Heat Pump
and Monitor Diode
• Hermetically Sealed 10-pin Mini-
butterfly Package
• High Reliability

Applications:

• Fiber laser systems
• Frequency Conversion
• Optical spectroscopy
