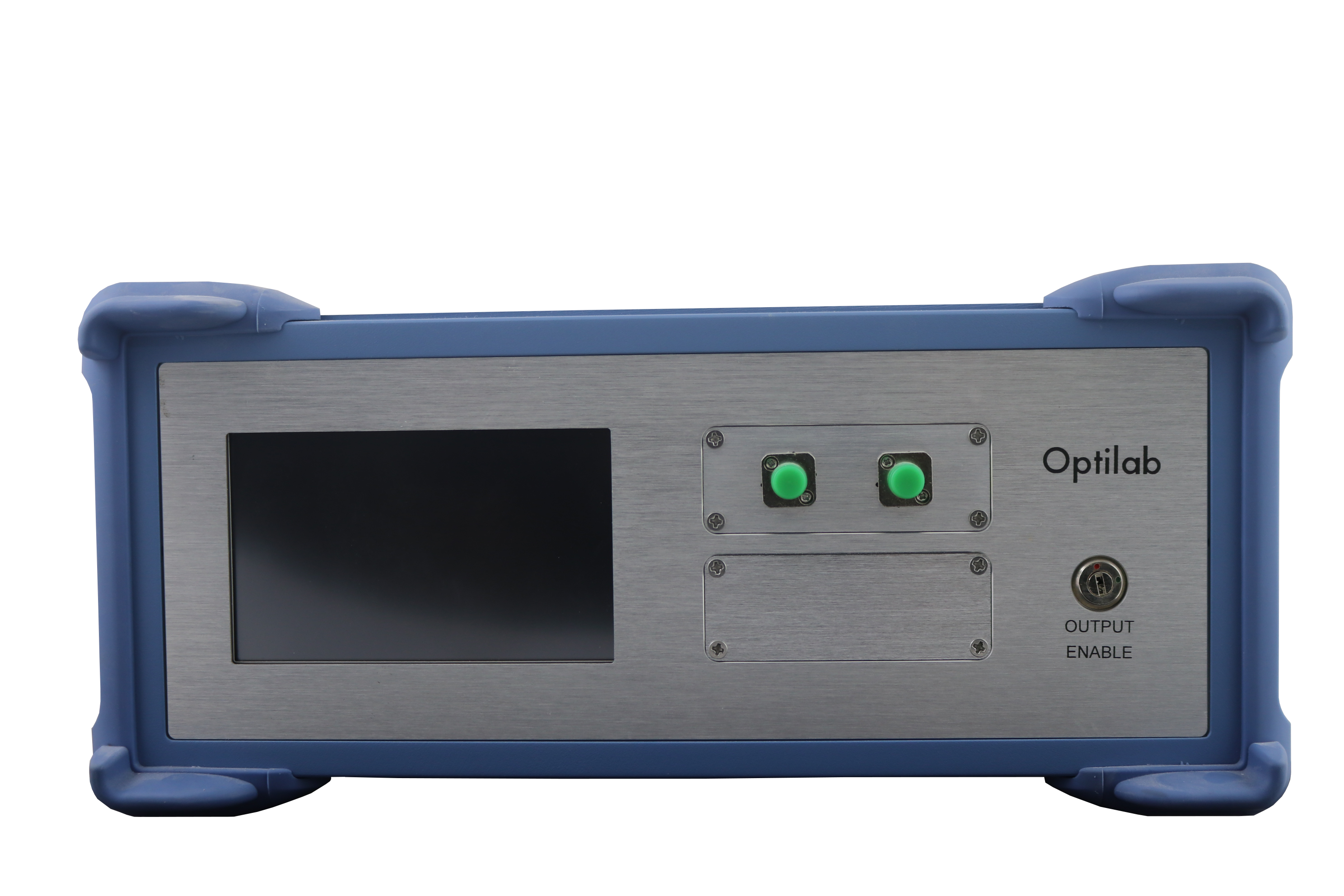

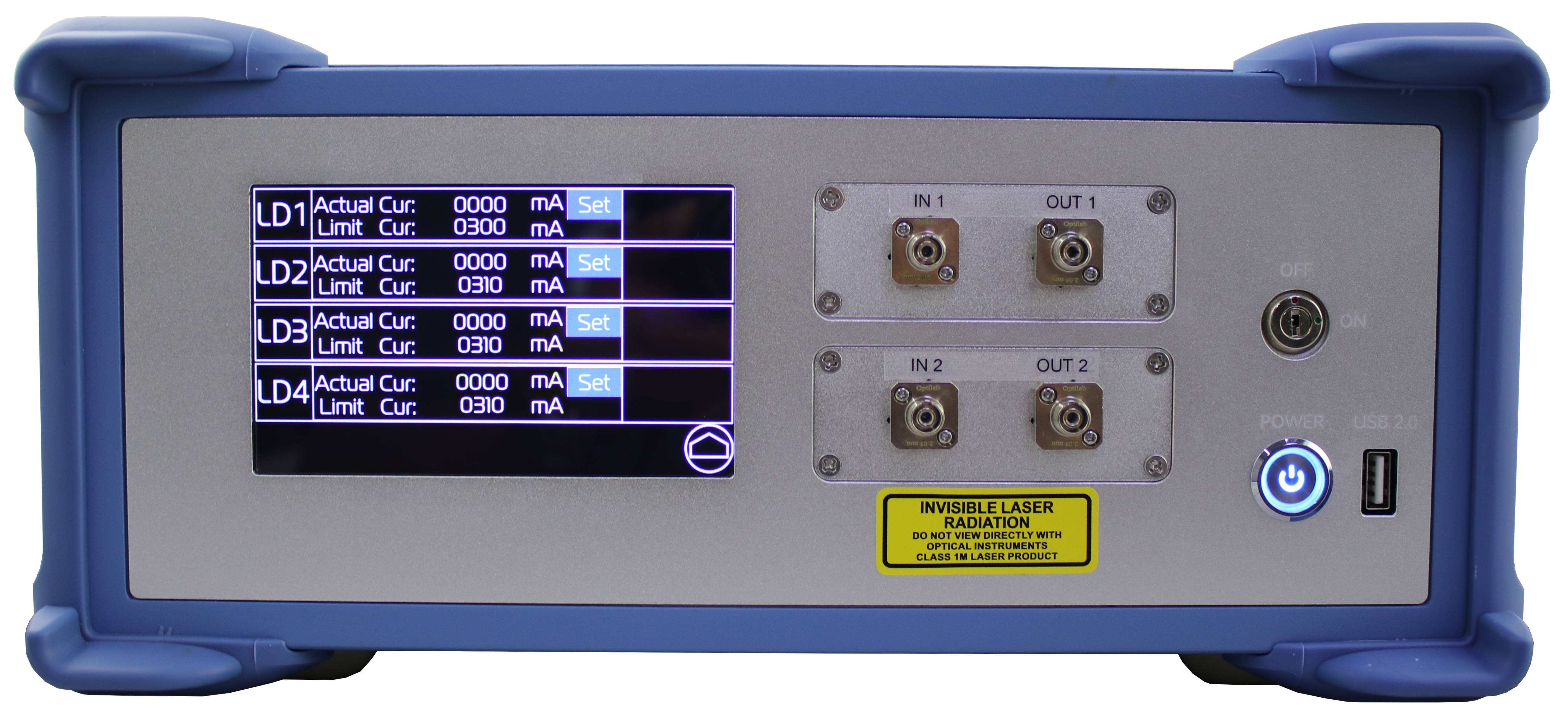

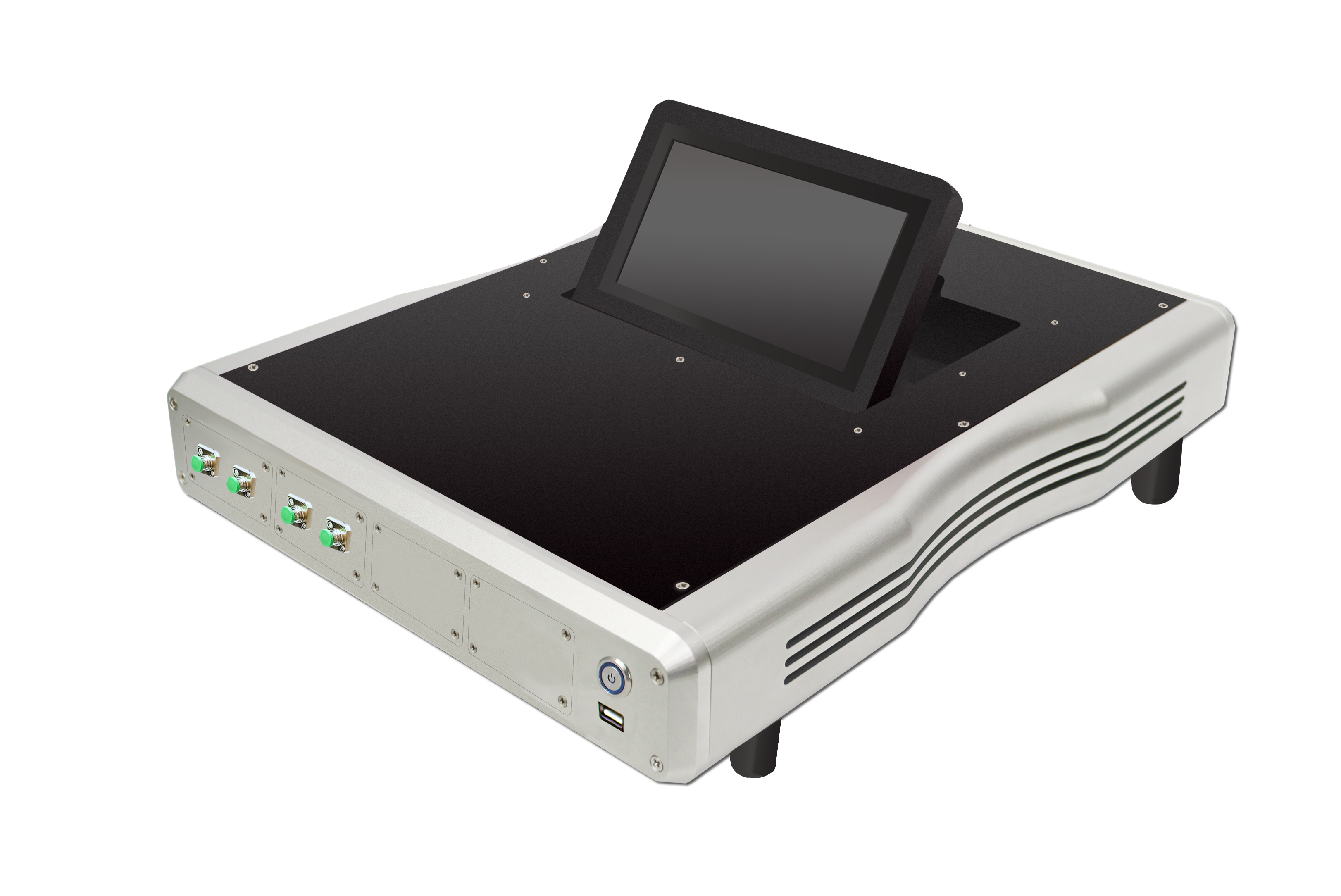

Semiconductor Optical Amplifier, 1310nm, Benchtop

VENDOR : optilab

$6,251.00

PART NUMBER : SOA-1310-B

The Optilab SOA-1310-B is a semiconductor optical amplifier with high fiber-to- fiber gain, designed to be used in general applications to increase optical launch power to compensate for loss of other optical devices. The SOA-1310-B can be ordered with Single Mode (SM) or Polarization Maintaining (PM) fiber input/output, with this particular SOA module having broadband amplification from 1250nm to 1350nm wavelengths, in a benchtop. It requires only AC power cord with low power consumption, with a full software control and monitoring via RS232 serial communication protocol.

Features
• Wideband 1250nm - 1350nm amplification
• High fiber-to-fiber gain of 19 dB
• Up to 16 dBm output
• Benchtop
• PM Panda fiber input/output (optional)
• Front touch screen control
