12 GHz Modulator Driver w/ Adjustable DC Bias
12 GHz Modulator Driver w/ Adjustable DC Bias

12 GHz Modulator Driver w/ Adjustable DC Bias

VENDOR : optilab

$1,535.00
PART NUMBER : MD-12-DC

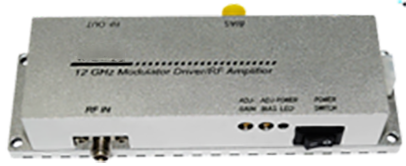

The Optilab MD-12-DC Modulator Driver (MD) is a 12 GHz Bandwidth RF Amplifier in a compact and user-friendly module that provides a high-quality, single-ended voltage to drive an external LiNbO3 modulator. Typical applications include driving EML, EAM, and Mach-Zehnder devices, and it can also be used as a wideband RF amplifier with useable bandwidth of up to 12 GHz, including its +26 dBm adjustable output, making it suitable for many RF link applications. The MD-12-DC amplifies 12.5 Gb/s data input signals to >7.5 Vp-p drive levels, and the flat gain and group delay response yield a high quality, low-jitter electrical drive signal for digital applications. Featuring a 12 V DC power supply, this versatile module also has an anodized, precision-machined aluminum housing designed for efficient heat dissipation during prolonged use. In addition to its amplfication function, the MD-12-DC also features a manually adjustable DC bias output voltage port, to further compliment its effectiveness when used with a standard LiNbO3 external modulator.
Please contact us at +1(480)719-1502 or email sales@oequest.com for more info.

Features:
➤ Inverting Amplifier
➤ Bandwidth up to 12 GHz
➤ Data rates exceed 12.5 Gb/s
➤ Manual DC Bias Output Port to 12 Volt
➤ Compact size
➤ Variable Gain Control built-in
➤ Single 12 V Power supply required (Not included)
➤ Built in heat sink

Applications:
➤ 12.5 Gb/s Digital Modulation
➤ SONET/SDH
➤ Analog RF Amplification to 15 GHz
➤ RF over Fiber Link Amplified
➤ General Laboratory Testing
