1550 nm, 500 MHz Phase Modulator
1550 nm, 500 MHz Phase Modulator

1550 nm, 500 MHz Phase Modulator

VENDOR : optilab

$2,250.00
PART NUMBER : PM-1550-0.5-LD

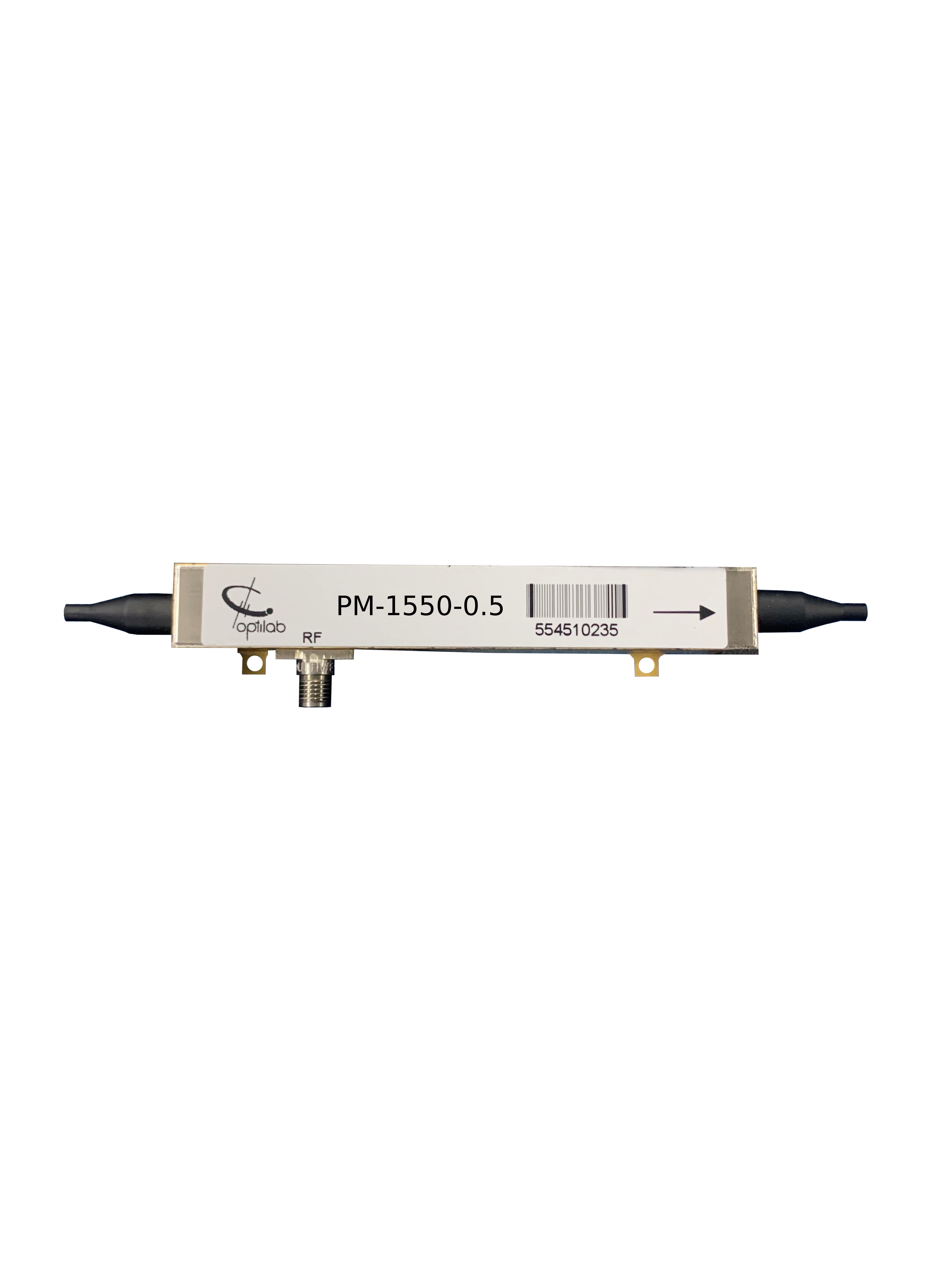

The Optilab PM-1550-0.5-LD phase modulatoris a 500 MHz LiNbO3 modulator. This modulator can provide phase modulation with a low driving voltage. Its low insertion loss provides for its maximum transmission power. The PM-1550-0.5-LD modulator uses polarization maintaining (PM) input and output fibers, making it easy to integrate with other optical components. Contact Optilab for more information.

Features:

• Up to 500 MHz Bandwidth • Low Optical Loss • 1550 nm operating wavelength • Low Drive Voltage • Minimal Back Reflections • Polarization Maintaining

Applications:

• FM Spectroscopy • Frequency Shifting • Laser Linewidth Broadening • Coherent Communications • Optical Chirping • Optical Sensing

Datasheet
