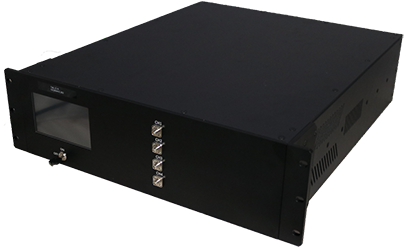

The Optilab TWL-C-R is a high spectral purity and stable tunable wavelength laser source. The TWL-C-R features wide wavelength tuning range, narrow laser linewidth, high Side Mode Suppression Ratio (SMSR), excellent wavelength stability and optical output level exceeding 30mW. With the standard Polarization Maintaining (PM) fiber output, the TWL-C-R offers a linearly polarized output. These features make the cost effective TWL-C-R well-suited for many different applications, including DWDM device testing, optical sensing, and laboratory measurement applications. The TWL-C-R tunable laser is available in a standard 1U 19” rack mountable housing, and includes an easy-to-use Labview control software and RS232 Interface for remote operation in laboratory environments.
Contact Optilab for more information @602-343-1496

Features:
➤ Wide tuning range from 1530 to 1565 nm
➤ High optical output power of 30 mW
➤ Narrow laser linewidth of 100 kHz available upon request
➤ Excellent Side Mode Suppression Ratio of 55 dB
➤ Polarization Maintaining (PM) Output
➤ Intuitive and easy to use Labview interface

Applications:
➤ Laboratory Testing and Measurement
➤ Seed Lasers for modulators
➤ DWDM Networks
➤ Fiber Optics Components
➤ Fiber Sensors

Datasheet

User Manual
