The Optilab TWL-C series are high spectral purity and stable tunable wavelength laser source. TWL-4-B-MIC features wide wavelength tuning range, narrow laser linewidth, high Side Mode Suppression Ratio (SMSR), excellent wavelength stability and optical output level exceeding 20mW. With the standard Polarization Maintaining (PM) fiber output, TWL-4-B-MIC offers a linearly polarized output. These features make the cost-effective TWL-4-B-MIC well-suited for many different applications, including DWDM device testing, optical sensing, and laboratory measurement applications.

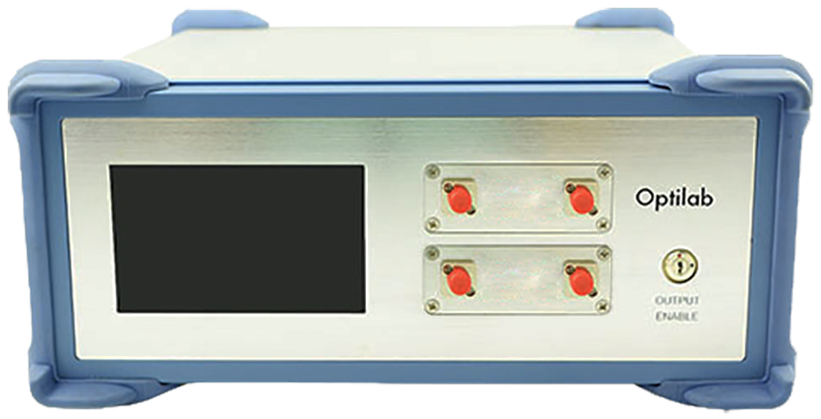

The TWL-4-B-MIC features four separate laser channels with independent software control, and is available in a standard benchtop housing. It includes an easy-to-use control software via USB interface for remote operation in laboratory environments. Contact Optilab for more information.

Features

• Four optical channels
• Excellent Side Mode Suppression Ratio of 55 dB
• 1 Year Warranty
• Wide Tuning Range from 1530 nm to 1607 nm
• PM output
• Intuitive and easy to use USB interface

Applications

• Laboratory Testing and Measurement
• CWDM Networks
• Seed Laser
• Fiber Optics Components Testing
