C Band Wavelength Tunable Laser Module
C Band Wavelength Tunable Laser Module

C Band Wavelength Tunable Laser Module

VENDOR : optilab

$4,715.00
PART NUMBER : TWL-C-B-M

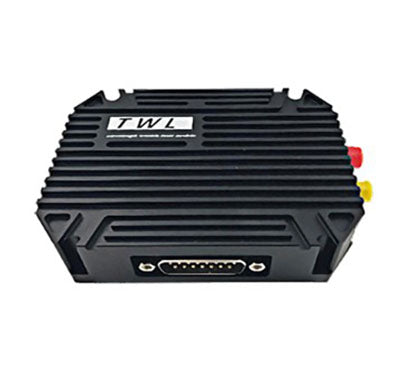

The TWL-C-B-M is a wavelength tunable laser module in C-band based on integrable tunable laser assembly (ITLA). The TWL-C-B-M alleviates inventory and costs in high-channel-count DWDM systems by allowing a single device to replace each of the single-channel devices. Full-band tunable assemblies also enable system functionality such as hot back-up and dynamic provisioning in addition to applications of optical regeneration and wavelength conversion, with the HP version also including a built-in sweep function for continuous scanning applications. The TWL-C-B-M has a low Relative Intensity Noise (RIN), a high Side-Mode Suppression Ratio (SMSR), an ultra narrow linewidth, and excellent wavelength accuracy. Its RS232 control complies to OIF ITLA Multi Source Agreement (MSA) standard, with a provided GUI software for intuitive control of the wavelength and optical power. The TWL-C-B-M can be used for Dense Wavelength Division Multiplexing (DWDM) optical Transceivers and DWDM discrete line card design. The TWL-C-B-M requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features
➤ Wide wavelength tuning range 1527.6-1567.13nm
➤ 1 MHz precise wavelength step resolution
➤ 30 mW typ. output power
➤ Tunable DWDM transponders and transceivers
➤ < 10 kHz narrow laser linewidth
➤ Optical add/drop multiplexers
➤ DWDM transmission systems

Applications:
➤ Continuous wavelength sweeping function
➤ Optical packet or burst-mode switching
➤ 55 dB side mode suppression ratio
➤ Polarization maintaining (PM) output
➤ Intuitive & easy to use USB interface
➤ Test & measurement equipment
➤ Fiber sensing & interrogation
➤ Optical spectrum characterization

Datasheet
