Multi-functional Integrated Optical Chip Package, 1550 nm
Multi-functional Integrated Optical Chip Package, 1550 nm

Multi-functional Integrated Optical Chip Package, 1550 nm

VENDOR : optilab

$2,295.00

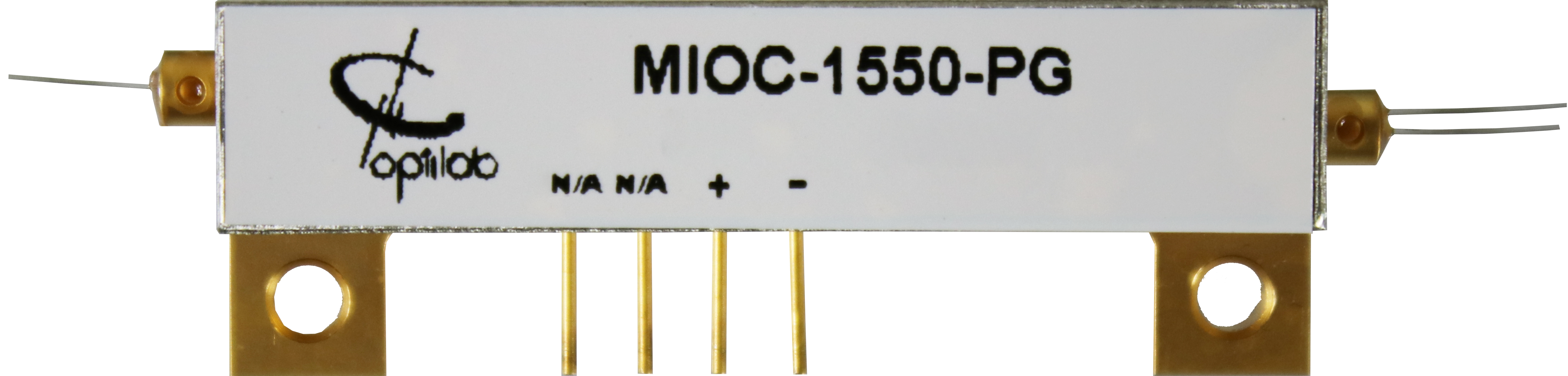

PART NUMBER : MIOC-1550-PG

The Optilab MIOC-1550-PG is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550 is fabricated with Proton Exchange (PE) optical waveguides. The MIOC-1550-PG features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-PG assures high reliability and performance over wide temperature range, contact Optilab for more information.

Features:
- 1550 +/- 20 nm operation
- PM input and output port
- Polarization extinction ratio > 60 dB
- Low Vπ voltage 4 V
- Polarization crosstalk < -20 dB
- Low insertion loss, 3.5 dB
- Unpackaged chip available

Applications:
- Fiber Optic Gyroscope (FOG)
- Fiber Optic Current Sensor (FOCS)
- Hydrophone and other optic sensitive fields
- Research and development
