Multi-functional Integrated Optical Chip Unpackage, 1550 nm
Multi-functional Integrated Optical Chip Unpackage, 1550 nm

Multi-functional Integrated Optical Chip Unpackage, 1550 nm

VENDOR : optilab

$1,045.00
PART NUMBER : MIOC-1550-BC

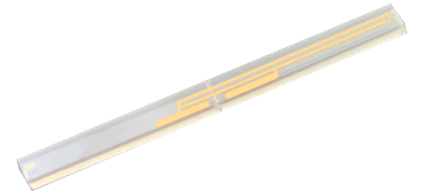

The Optilab MIOC-1550-BC is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550 is fabricated with High Temperature Proton Exchange (HTPE) optical waveguides.The MIOC-1550-BC features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-BC assures high reliability and performance over wide temperature range, contact Optilab for more information.

Features:
- 1550 ± 20 nm operation
- PM input and output port
- Polarization extinction ratio > 60 dB
- Low VĎ€ voltage, 4 V
- Polarization crosstalk < -20 dB
- Low insertion loss, 3.5 dB
- Unpackaged chip available

Applications:
- Fiber Optic Gyroscope (FOG)
- Fiber Optic Current Sensor (FOCS)
- Hydrophone and other optic sensitive fields
- Research and development

Datasheet
