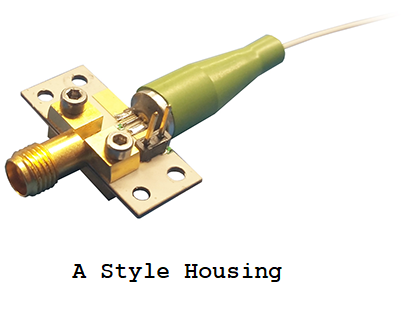

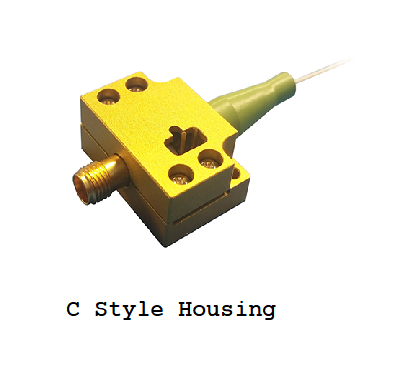

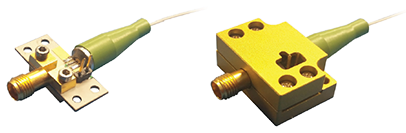

The Optilab PD-40-A-AC is a highly linear, 40 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range, and assures a 40 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 10 mW. The PD-40-A-AC is available in a standard 2-pin package with K-connector output for ease of assembly. Contact Optilab for more information.

Features
➤ Wide bandwidth 60 kHz to 40 GHz
➤ Highly Linear to 10 mW+ input power
➤ Operating Temperature from -10ºC to +50ºC
➤ High Current Handling up to 35 mA
➤ Flat frequency response, ±1 dB
➤ Useful Spectral Range 850 nm -1650 nm

Applications
➤ Analog RF over Fiber
➤ Optically Amplified Systems
➤ RZ and NRZ up to 40 Gb/s
➤ LIDAR Measurements
➤ Coherent Lightwave Systems
➤ Front-End O/E Converter for Test Instruments
