40 GHz Linear InGaAs PIN Photodetector (B Grade)
40 GHz Linear InGaAs PIN Photodetector (B Grade)
40 GHz Linear InGaAs PIN Photodetector (B Grade)
40 GHz Linear InGaAs PIN Photodetector (B Grade)

40 GHz Linear InGaAs PIN Photodetector (B Grade)

VENDOR : optilab

$1,375.00
PART NUMBER : PD-40B-A-AC

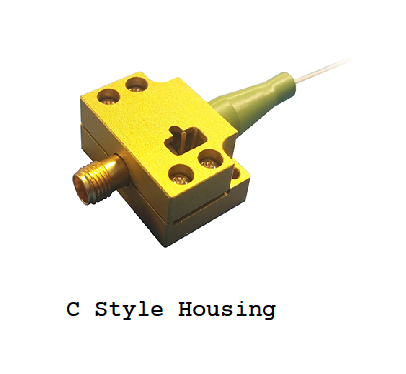

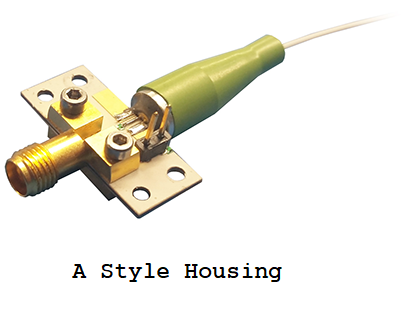

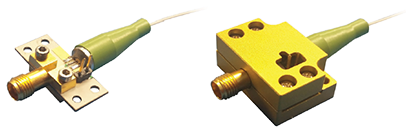

The Optilab PD-40B is a highly linear, 40 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range, and assures a 40 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 10 mW. The PD-40B is available in a standard 2-pin package with K-connector output for ease of assembly, and can be ordered with or without the external protective housing. Contact Optilab for more information.

Features
➤ Wide bandwidth 60 KHz to 40 GHz
➤ Highly Linear to 10 mW+ input power
➤ Operating Temperature from -10ºC to +50ºC
TQ Version: -55 °C to +70 °C
➤ High Current Handling up to 35 mA
➤ Flat frequency response, ±1 dB
➤ Useful Spectral Range 850 nm -1650 nm

Applications
➤ Analog RF over Fiber
➤ Optically Amplified Systems
➤ RZ and NRZ up to 40 Gb/s
➤ LIDAR Measurements
➤ Coherent Lightwave Systems
➤ Front-End O/E Converter for Test Instruments

Datasheet

Please contact sales@optilab.com to see availability on B grade PD
