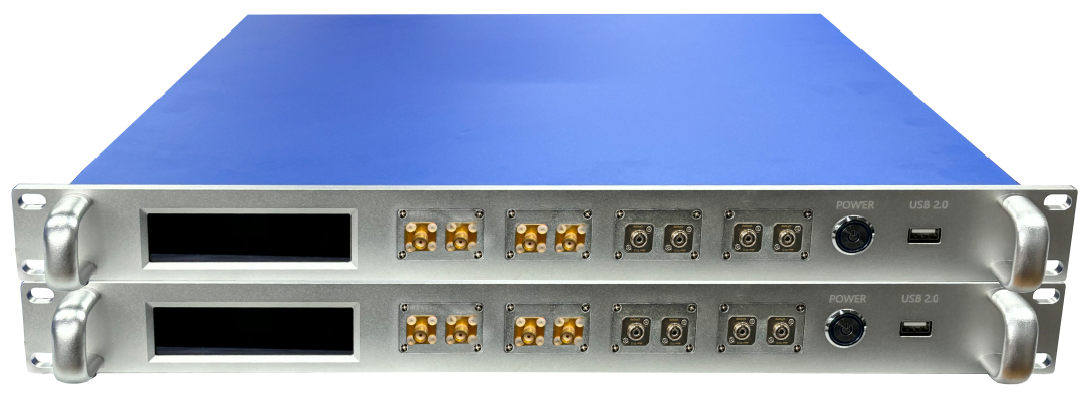

Optilab’s EPG-100G is combined four 25 Gb/s Pattern Generator (PG). This high performance pattern generator unit provides up to 25 Gb/s eye diagram generation for Bit Error Rate Testing (BERT). The user selectable reference clock allows testing BER at a specific data rate with external clock input or at a pre-defined data rate using the internal clock. A high speed synchronized clock at half or full data rate is available for eye pattern monitoring or RZ pulse generation. An intuitive GUI, Optilab Teraport, is provided with the BERT system for easy operation. Contact Optilab for more information.

Features
➤ Data Rate from 2 x 20 to 4 x 25 Gbps
➤ PRBS of 27-1 or 231-1
➤ Integrated DQPSK Precoder
➤ Error Injection Function
➤ Teraport GUI Software Included
➤ Differential Output Adjustable to 1 Volt
➤ Eye Crossing Adjustment

Applications
➤ Photonics module testing
➤ Electrical eye diagram to 24 Gb/s x4
➤ 43 Gbps DQPSK link
➤ 100 Gbps DP-QPSK testing
