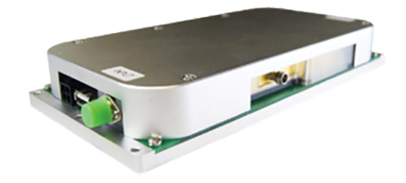

12 GHz Lightwave Modulator with Bias Control, B housing
12 GHz Lightwave Modulator with Bias Control, B housing

12 GHz Lightwave Modulator with Bias Control, B housing

VENDOR : optilab

$3,207.00
PART NUMBER : LMB-12

The Optilab LMB-12 is a high performance Lightwave Modulator Board designed for analog photonics applications from DC to 12 GHz. This unit includes a 12 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as tunable laser, narrow linewidth laser, making it a versatile solution for OEM-based system integration. The LMB-12 requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features
➤ 8 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Accepts external laser source via input
➤ Single 5 V power supply required (Not Included)
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55 °C to +75 °C)

Applications:
➤Sub-nanosecond pulse generation
➤Optical communications to 25 Gb/s
➤Active mode lock (PM version)
➤Analog photonics
➤12 GHz RFoF transmission
➤RF/IF signal distribution
➤Satellite communication

Datasheet
