1270 nm to 1610 nm Nanosecond Pulsed CWDM Laser Module
1270 nm to 1610 nm Nanosecond Pulsed CWDM Laser Module

1270 nm to 1610 nm Nanosecond Pulsed CWDM Laser Module

VENDOR : optilab

$3,265.00
PART NUMBER : NPL-CWDM-1270-M

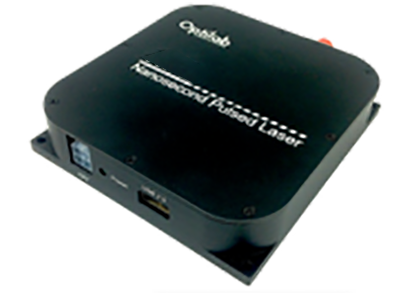

The Optilab NPL-CWDM-M is a variable pulsed CWDM DFB laser source, a building block ideal for MOPA, LIDAR, OTDR laser systems development and applications. This fully integrated compact module contains a Distributed Feedback (DFB) laser and variable nanosecond pulse generation circuits. The NPL-CWDM-M provides 10 mW optical peak power in 1550 nm wavelength region, with a programmable pulse width from 10 ns to 1000 ns, and a selectable pulse repetition rate from 100 Hz to 1 MHz. The optical pulse generation can alternatively be controlled via an external electrical trigger. In a compact design, NPL-CWDM-M is applicable for OEM integration or as a stand alone pulsed laser source. The NPL-CWDM-XXXX-M requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
➤18 CWDM Wavelengths
➤1270 nm - 1610 nm
➤Requires no external pulse generator
➤Pulse width: 10 ns to 1000 ns, programmable
➤Selectable repetition rate: 100 Hz to 1 MHz
➤Up to 10 mW peak power
➤RS-232 via USB control interface

Applications:
➤Master Oscillator (MO) for MOPA
➤Pulsed light source for LiDAR
➤Laser source for OTDR
➤Pulse based optical instrumentation
➤Raman distributed sensing
