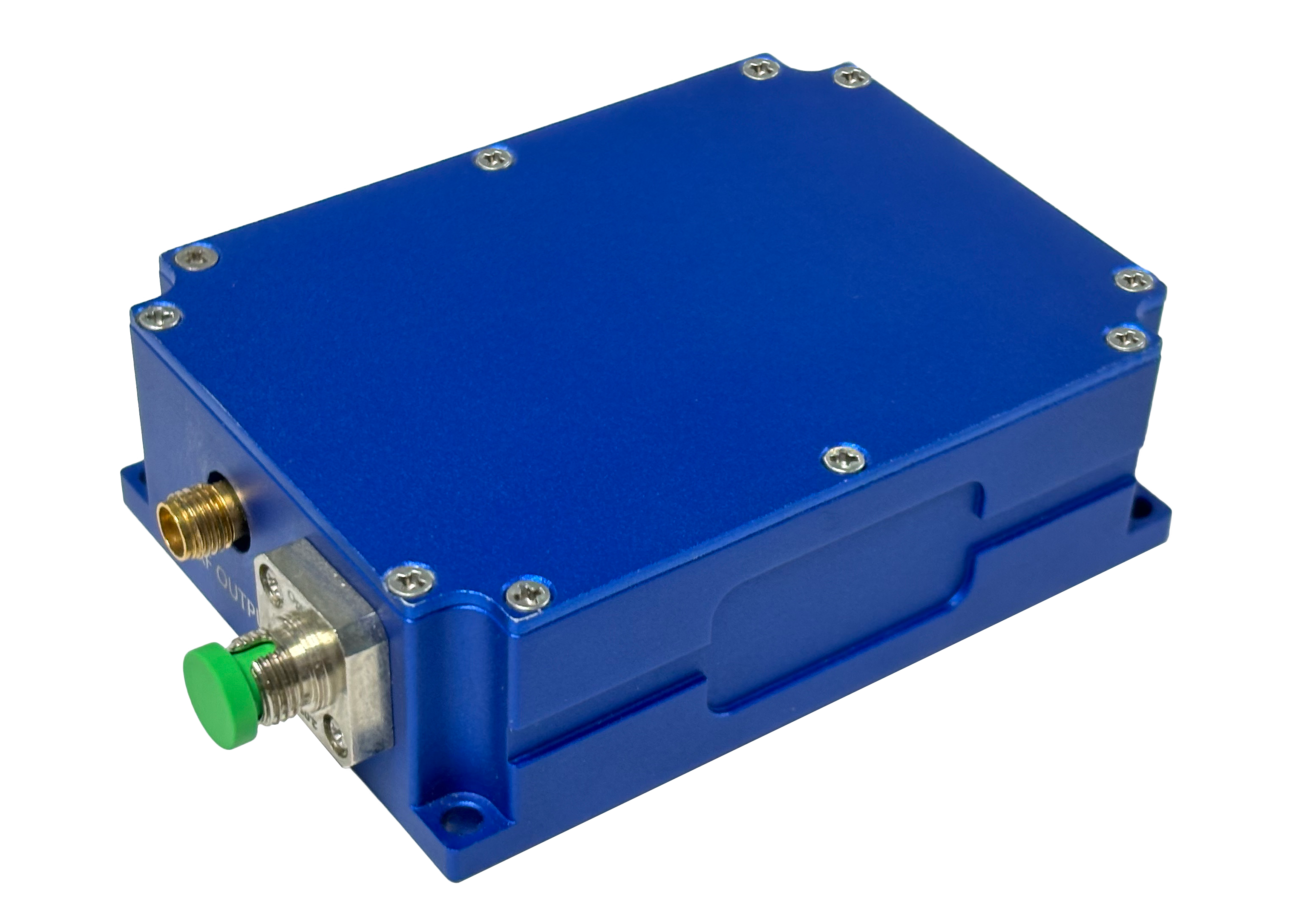

15 GHz Linear GaAs PIN Photodetector, 850nm, Module
15 GHz Linear GaAs PIN Photodetector, 850nm, Module
15 GHz Linear GaAs PIN Photodetector, 850nm, Module
15 GHz Linear GaAs PIN Photodetector, 850nm, Module
15 GHz Linear GaAs PIN Photodetector, 850nm, Module

15 GHz Linear GaAs PIN Photodetector, 850nm, Module

VENDOR : optilab

$1,445.00
PART NUMBER : SPD-15-M-DC

The Optilab SPD-15-M is a highly linear, 15 GHz bandwidth GaAs PIN photodiode module that is optimized for 850 nm operational wavelength; it is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 850 nm and assures a 15 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 20 mW This compact, cost-effective receiver module can provide users with status monitoring through the use of an on-board processor that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. Contact Optilab for more information.

Features:
*Optimized for 850nm
*DC to 15 GHz, DC coupled
*Low Bias Voltage
*Responsivity 0.55 A/W @850nm

Applications:
*15 GHz Analog RF over Fiber
*850 nm picosecond pulse detection
*Coherent lightwave systems
*Front-End O/E converter for test instrument

Datasheet
