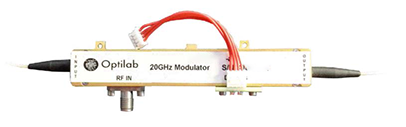

The Optilab IM-1550-20-P Intensity Modulator is designed for TDM and WDM 20 Gb/s transmission, and can also be incorporated for analog modulation of up to 20 GHz for satellite links, antenna remoting, and RF over Fiber. It is a hands-on bias-stabilized lithium modulator that proves to be extremely stable for long periods of time, and features excellent stability in a biased circuit, operating from 1530 nm to 1610 nm. It has an excellent operating temperature tolerance ranging from -30 oC to +60 oC, and its low insertion loss provides for its maximum transmission power. The IM-1550-20-P uses a Polarization Maintaining (PM) input fiber and a Single Mode (SM) output fiber. It features separate RF and bias ports.
Please contact us at +1(602) 343-1496 or email firstname.lastname@example.org for more info.
➤ Excellent stability in a biased circuit
➤ 1530 nm to 1610 nm operating wavelength
➤ Low insertion loss
➤ Useful bandwidth up to 20 GHz
➤ Wide operating temp. range of -30 ºC to +75 ºC
➤ DC Bias Pin Option
