18 dB Gain Raman Amplifier, 1540 nm to 1575 nm
18 dB Gain Raman Amplifier, 1540 nm to 1575 nm

18 dB Gain Raman Amplifier, 1540 nm to 1575 nm

VENDOR : optilab

$14,893.00
PART NUMBER : RA-C3-18-R

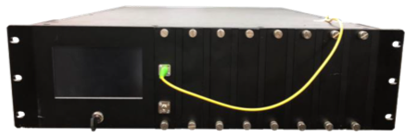

Optilab Raman Amplifier Rackmount Units are designed for distributed Raman amplification in C-Band. The RA-C3-18-R unit provides over 18 dB On/Off gain flattened amplification from 1540nm to 1575nm, thus can support up to 50 DWDM channels. Each of the two pump channels is configured with two high power pump laser diodes at 1444 and 1462 nm and one polarization beam combiner (PBC). The unit includes microcontroller based laser current control circuitry for enhanced stability and reliability. RA-C3- 18-R is an ideal amplifier for high channel count DWDM 40G/100G transmission and fiber sensor systems. It is equipped with LCD touch screen and LabVIEW (TM) remote user interface for easy operation. Contact Optilab for more information.

Features:

• 1540 nm – 1575 nm • Over 18 dB On/Off Gain • Gain flatness of < ±1.5 dB • Excellent Stability • Up to 50 DWDM Channels • Touch Screen LCD & USB Interface

Applications:

• Long Haul / Ultra-Long Haul Systems • Long Repeaterless Links • Low Latency Links • Multi-Channel DWDM Networks • 40 / 100 Gbps Transmission
