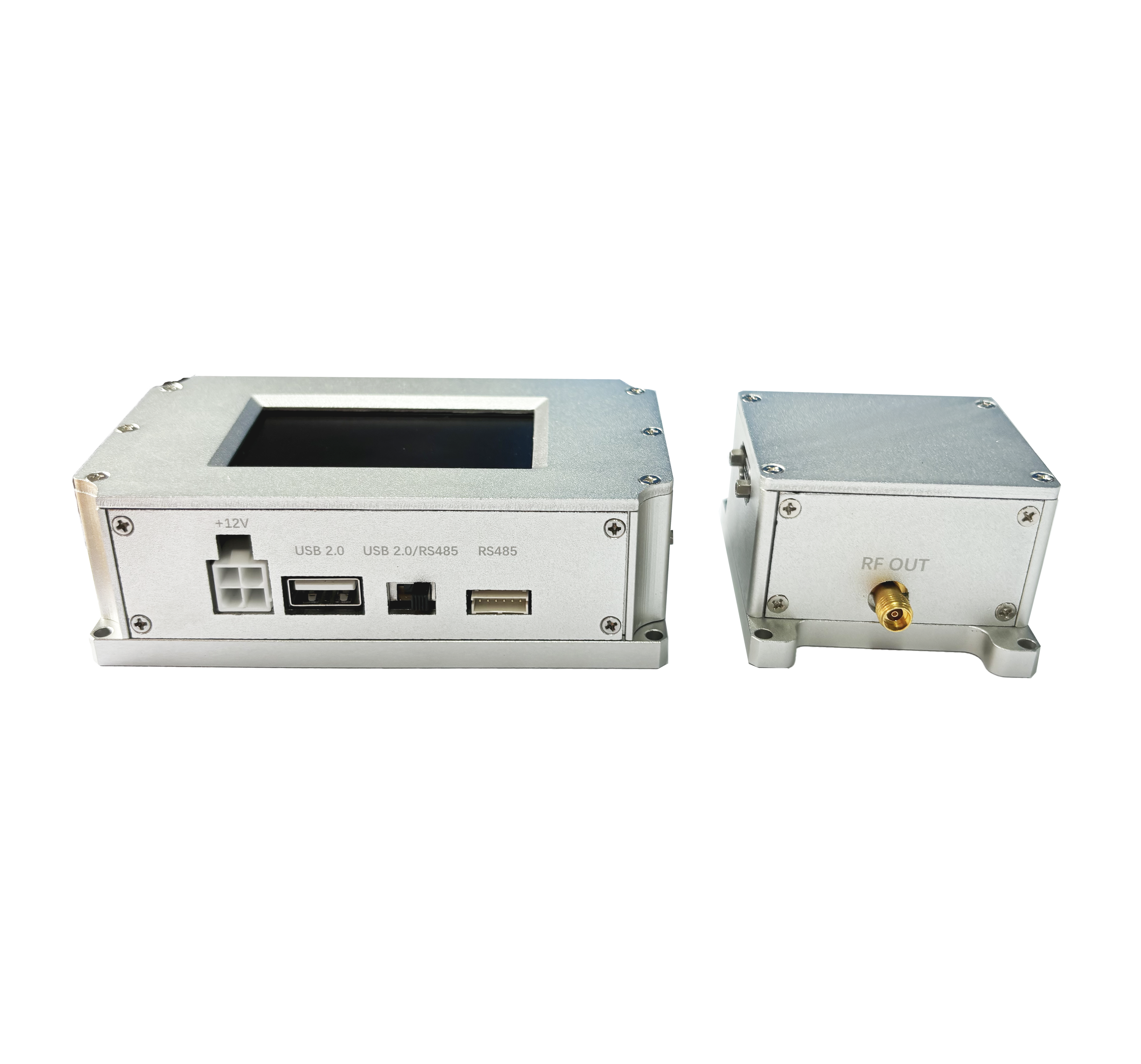

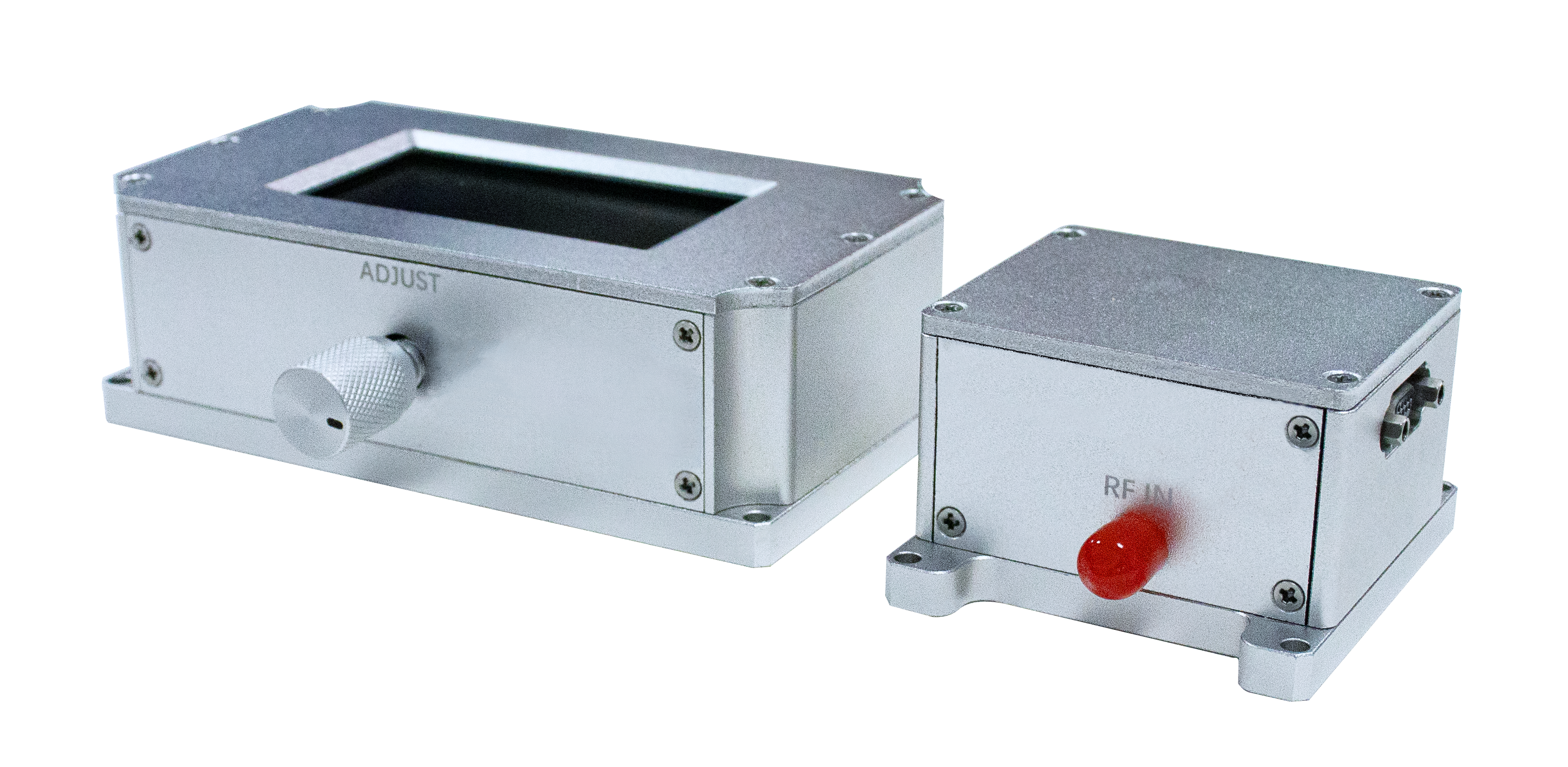

The Optilab MD-20-D Modulator Driver is a compact, user-friendly 20 GHz RF amplifier designed to provide high-quality, single-ended voltage for driving optical modulators. It is ideal for applications such as driving EML, EAM, and Mach-Zehnder devices, and can also function as a wideband RF amplifier with a usable bandwidth of up to 20 GHz. The module features an adjustable output of up to 30 dBm, making it suitable for a range of RF link applications. The MD-20-D amplifies 20 Gb/s data input signals to drive levels exceeding 10 Vp-p. Its flat gain and group delay response ensure a high-quality, low-jitter electrical drive signal for digital applications. Powered by a single +12V DC supply, the module is housed in precision-machined, anodized aluminum for effective heat dissipation during extended use. For more information, contact Optilab.

Features
• Variable Gain Control via USB
• Built in heat sink
• Bandwidth from 0.1 to 20 GHz
• Output power up to 30 dBm

USE IN

• 20 GHz Analog RFoF link
• Amplified RF signals to 20 GHz
• General laboratory test and measurement
• 20 Gb/s digital modulation
