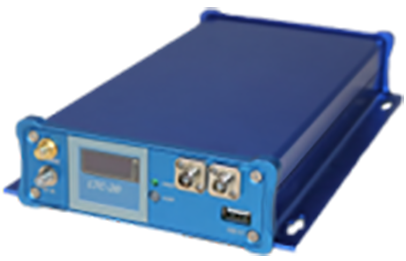

20 GHz Lightwave Modulator with Bias Control, C housing
20 GHz Lightwave Modulator with Bias Control, C housing

20 GHz Lightwave Modulator with Bias Control, C housing

VENDOR : optilab

$3,880.00
PART NUMBER : LMC-20

The Optilab LMC-20 is a high-performance Lightwave Modulator Board designed for analog photonics applications from 10MHz to 20 GHz. This unit includes a 20 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as a tunable laser or narrow linewidth laser, making it a versatile solution for OEM-based system integration. Contact Optilab for more information.

Features
➤ 20 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Accepts external laser source via input
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55 °C to +75 °C)

Datasheet
