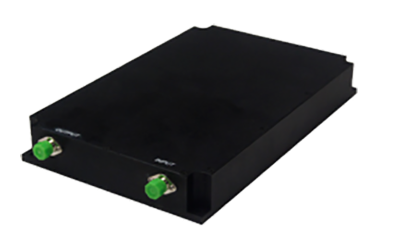

25 dB Gain Pre-Amp EDFA Module w/PM Output, C-band
25 dB Gain Pre-Amp EDFA Module w/PM Output, C-band

25 dB Gain Pre-Amp EDFA Module w/PM Output, C-band

VENDOR : optilab

$0.00
PART NUMBER : EDFA-PA-PM-M

The Optilab EDFA-PA-PM-M Pre-Amp EDFA is a Polarization Maintaining (PM) high-gain module for amplifying low input level signals that is an easy-to-use and cost-efficient solution for photonic subsystems, OEM integration, and fiber optic system integration. Using a high gain design, this module provides over 25 dB gain with a 4.5 dB noise figure and is designed to amplify signal with a low input level as low as -40 dBm. Software control is standard via an RS- 232 port for status monitoring and pump current adjustments, and pump laser protection and alarms are equipped to ensure the reliability and safety of the device. The EDFAPA-PM-M requires a single ±5 Volt DC power supply for operation that comes included with each unit. Contact Optilab for more information.

Features:

• High gain of more than 25 dB • PM Output • Designed for low input level • RS-232 standard for remote control • Wide wavelength operation range • ±5 V power supply • 10+ years of operation life
Applications:

• OEM integration for • Optical Networks • Research and Development • RF over Fiber • Pulse Amplification
