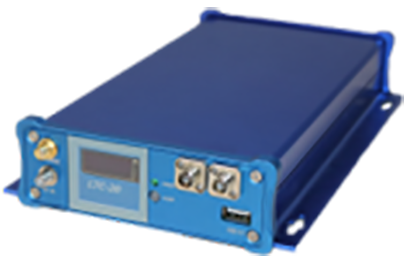

40 GHz Lightwave Modulator with Bias Control, C housing
40 GHz Lightwave Modulator with Bias Control, C housing

40 GHz Lightwave Modulator with Bias Control, C housing

VENDOR : optilab

$6,400.00
PART NUMBER : LMC-40

The Optilab LMC-40 is a high-performance Lightwave Modulator Board designed for analog photonics applications from DC to 40 GHz. This unit includes an 30 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as a tunable laser or narrow linewidth laser, making it a versatile solution for OEM-based system integration. Contact Optilab for more information.

Features
➤ 28 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Accepts external laser source via input
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55 °C to +75 °C)
