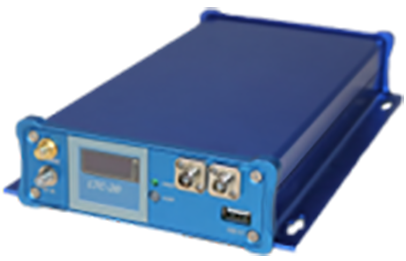

The Optilab LTC-6 is a high performance Lightwave Transmitter Modulator designed for analog photonics applications from DC to 6 GHz. This unit includes a 6GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as tunable laser, narrow linewidth laser, making it a versatile solution for RFoF system integration. Contact Optilab for more information.

Features:

• 6 GHz S21 bandwidth modulator • 1520 nm to 1610 nm wavelength range • Automatic Bias Control w/ 4 mode operation • Internal DFB laser up to 50 mW

• Customizable Options: • Low Drive Voltage • PM output • High Extinction Ratio (> 30 dB) • Temp. Qualified (-55oC to +75oC)

Applications:

• Sub-nanosecond pulse generation • Optical communications to 8 Gb/s • 6 GHz RFoF transmission • Analog photonics • RF/IF signal distribution • Satellite communication
