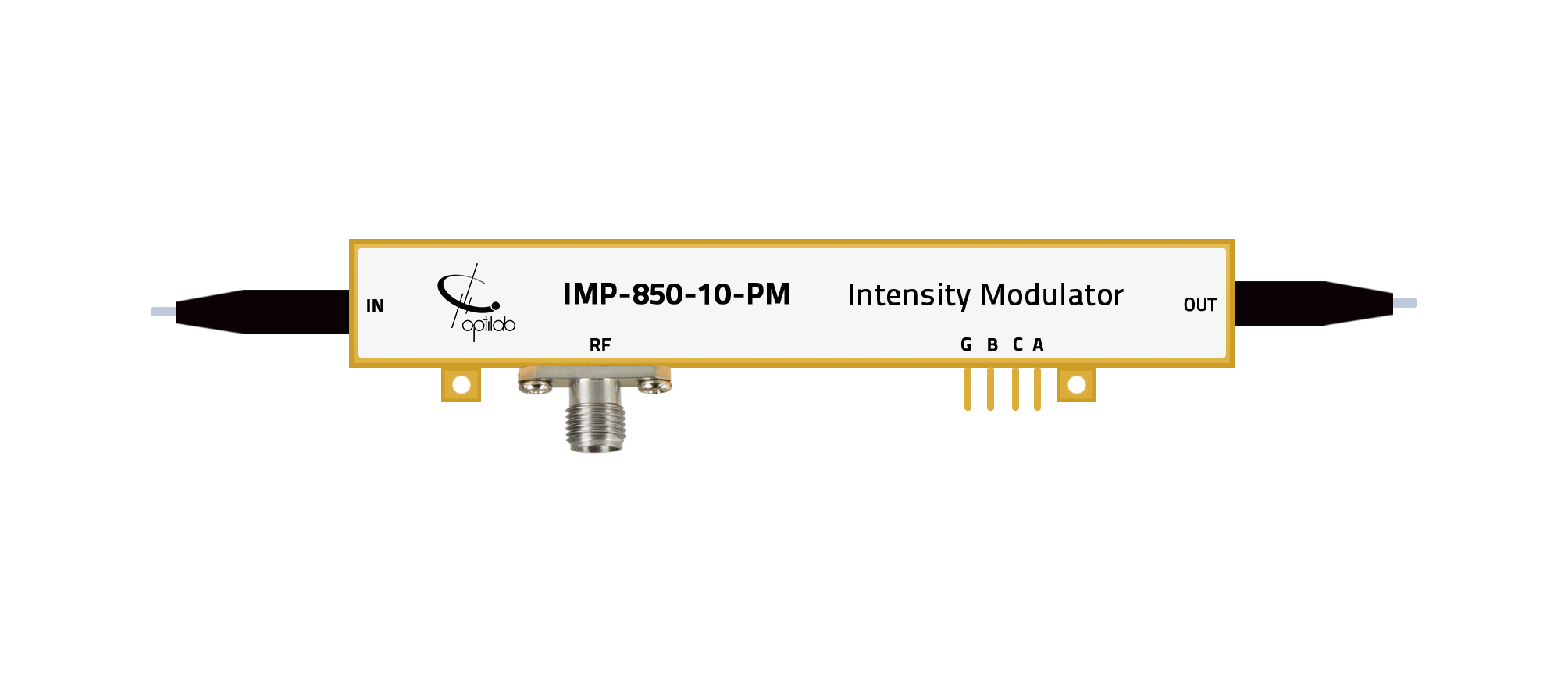

850 nm, 10 GHz Intensity Modulator, PM Output
850 nm, 10 GHz Intensity Modulator, PM Output

850 nm, 10 GHz Intensity Modulator, PM Output

VENDOR : optilab

$0.00
PART NUMBER : IMP-850-10-PM

The Optilab IMP-850-10-PM Intensity Modulator is designed for analog modulation of up to 10 GHz for satellite links, antenna remoting, and RF over Fiber. Featuring an Annealed Proton Exchange (APE) waveguide, this modulator provides low insertion loss, low Vpi, and high-power handling capability. It has an operating temperature tolerance ranging from -10 ÂşC to +55 ÂşC, and superior insertion loss provides for its maximum transmission power. The IMP-850-10-PM uses Polarization Maintaining (PM) input and output fibers. Contact Optilab for more information.

Features
➤ 10 GHz Bandwidth
➤ Polarization Maintaining output
➤ 850 nm operating wavelength
➤ Low insertion loss, low Vpi
➤ High input power handling capability
➤ Lump electrode design

Applications
➤ Analog Modulation
➤ Pulse Generation
➤ Research & Development
➤ Quantum Photonics
➤ Active Mode Locking Laser
