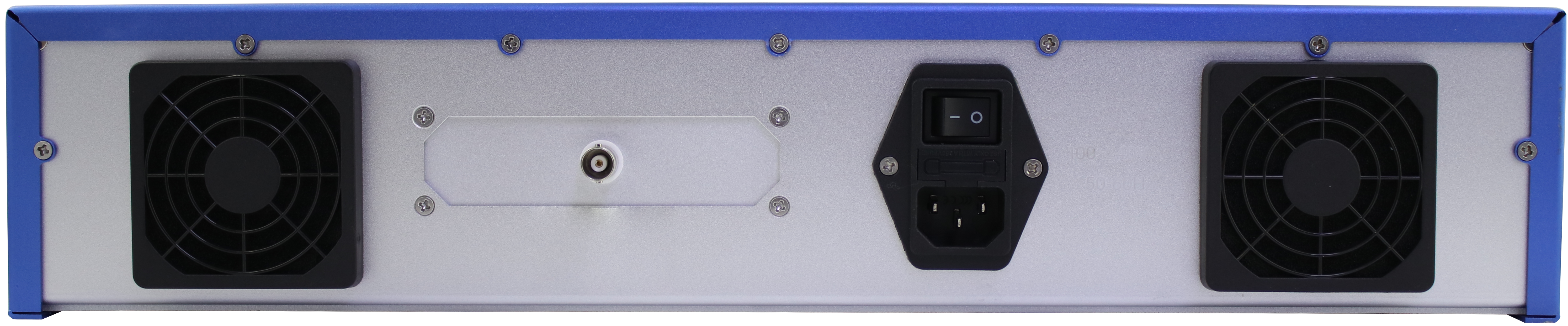

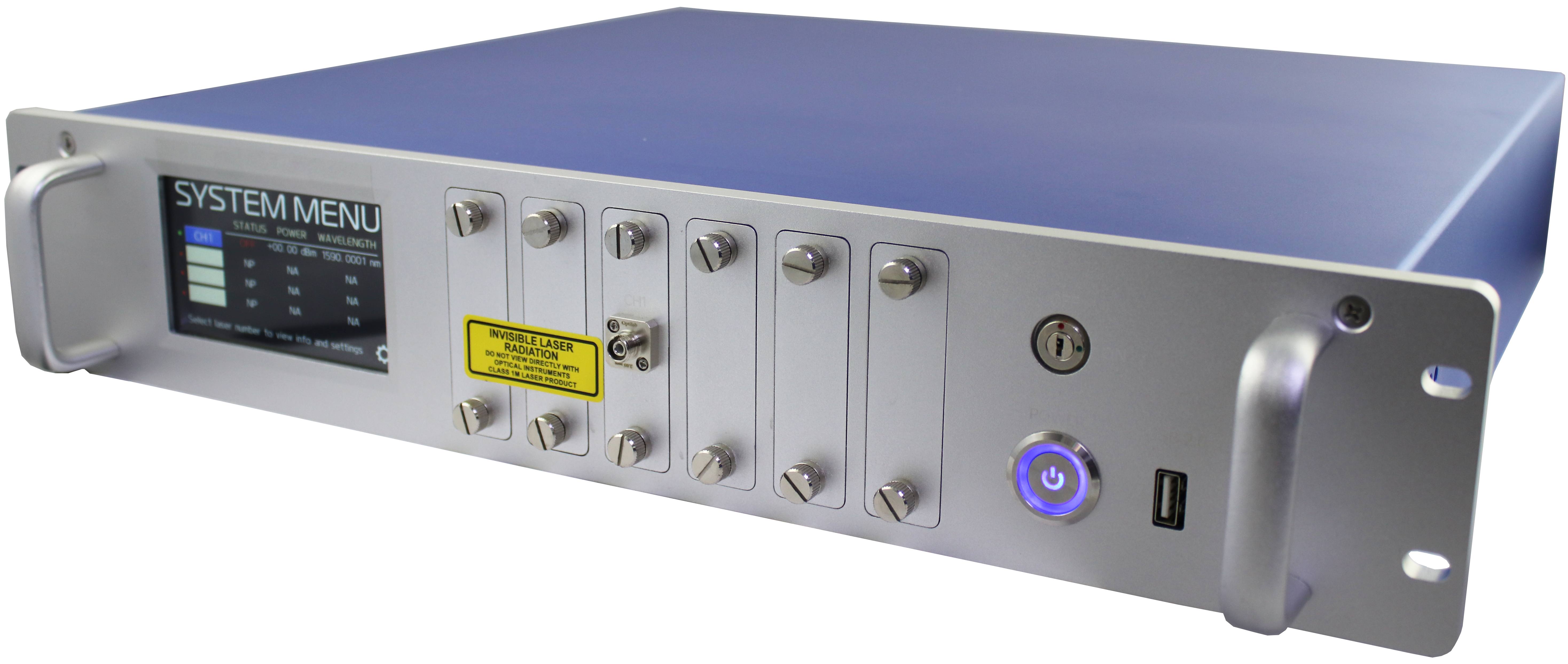

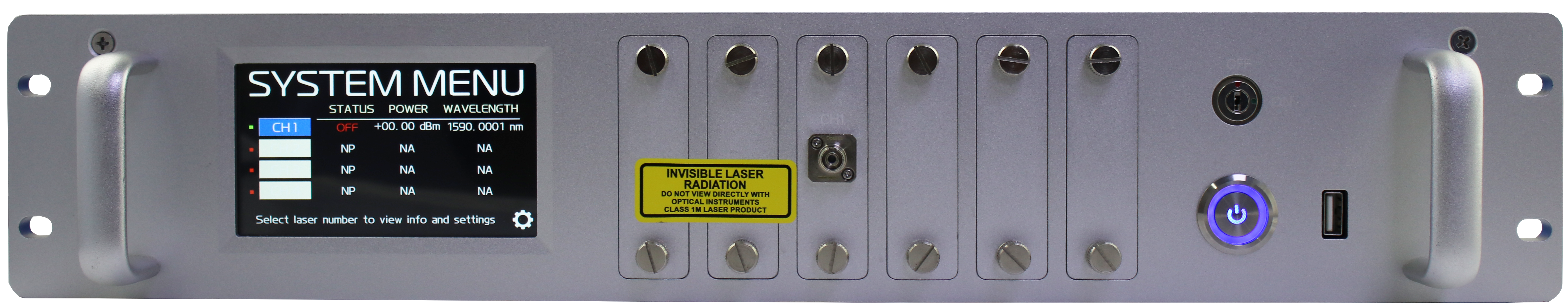

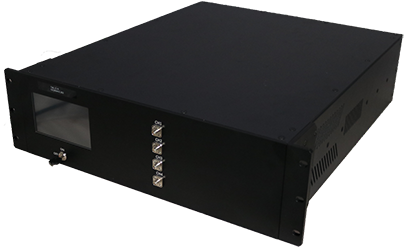

The Optilab TWL-CL-R is a high spectral purity and stable tunable wavelength laser source. The TWL-CL-R features wide wavelength tuning range, narrow laser linewidth, high Side Mode Suppression Ratio (SMSR), excellent wavelength stability and optical output level exceeding 30mW. With the standard Polarization Maintaining (PM) fiber output, the TWL-CL-R offers a linearly polarized output. These features make the cost-effective TWL-CL-R well-suited for many different applications, including DWDM device testing, optical sensing, and laboratory measurement applications. The TWL-CL-R tunable laser is available in a standard 1U 19” rack-mountable housing and includes an easy to use front panel interface. Contact Optilab for more information.

Features
➤ Wavelength range from 1529.16nm -1607.04nm
➤ High optical output power of 30 mW
➤ Narrow laser linewidth < 100 kHz
➤ Excellent Side Mode Suppression Ratio of 55 dB
➤ Polarization Maintaining (PM) Output
➤ Labview Interface Available

Applications
➤ Laboratory Testing and Measurement
➤ DWDM Networks
➤ Seed Lasers for modulators
➤ Fiber Optics Components
➤ Fiber Sensors
