Dual Pump Erbium-Doped Fiber Amplifier, C-Band, Rackmount w/PM Output

VENDOR : optilab

$9,540.00
PART NUMBER : EDFA-C-23-PM-R

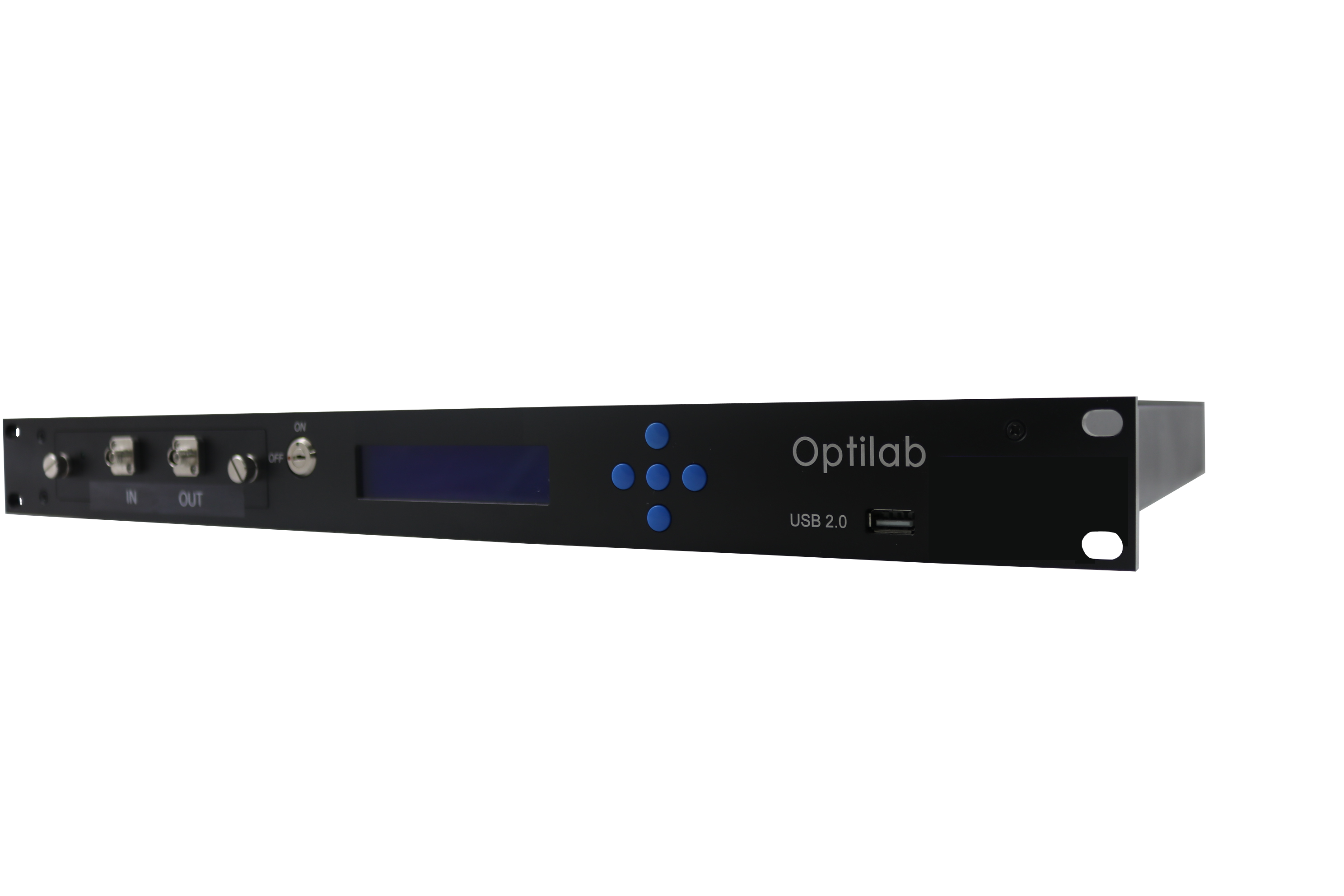

The Optilab EDFA-C-XX-PM-R Erbium-Doped Fiber Amplifier (EDFA) is a Polarization Mainataining (PM) dual pump, versatile amplifier designed for optical communication and other general-purpose optical applications. By using a dual pump laser (980nm & 1480nm) amplifier design with high efficiency, EDFA-C-XX-PM-R provides optical gain up to 35 dB, while maintaining low noise figure (NF) of 5 dB. The EDFA-C-XX-PM-R amplifier produces optical output levels up to +26 dBm with an input power level range from -12 dBm to +7 dBm. Featuring adjustable output level power via ACC through the front panel and software control through USB in a standard 1U rackmount. Contact Optilab for more information.

Features:

• PM Output • Up to +26 dBm output power • Dual Pump Design • Optical gain up to 35 dB • Input power range: -12 dBm to +7 dBm • Automatic Current Control (ACC) • Software control through USB

Applications:

• Optical Communication • Test and measurement • Pulse Amplification • General-purpose optical amplifier

Datasheet
