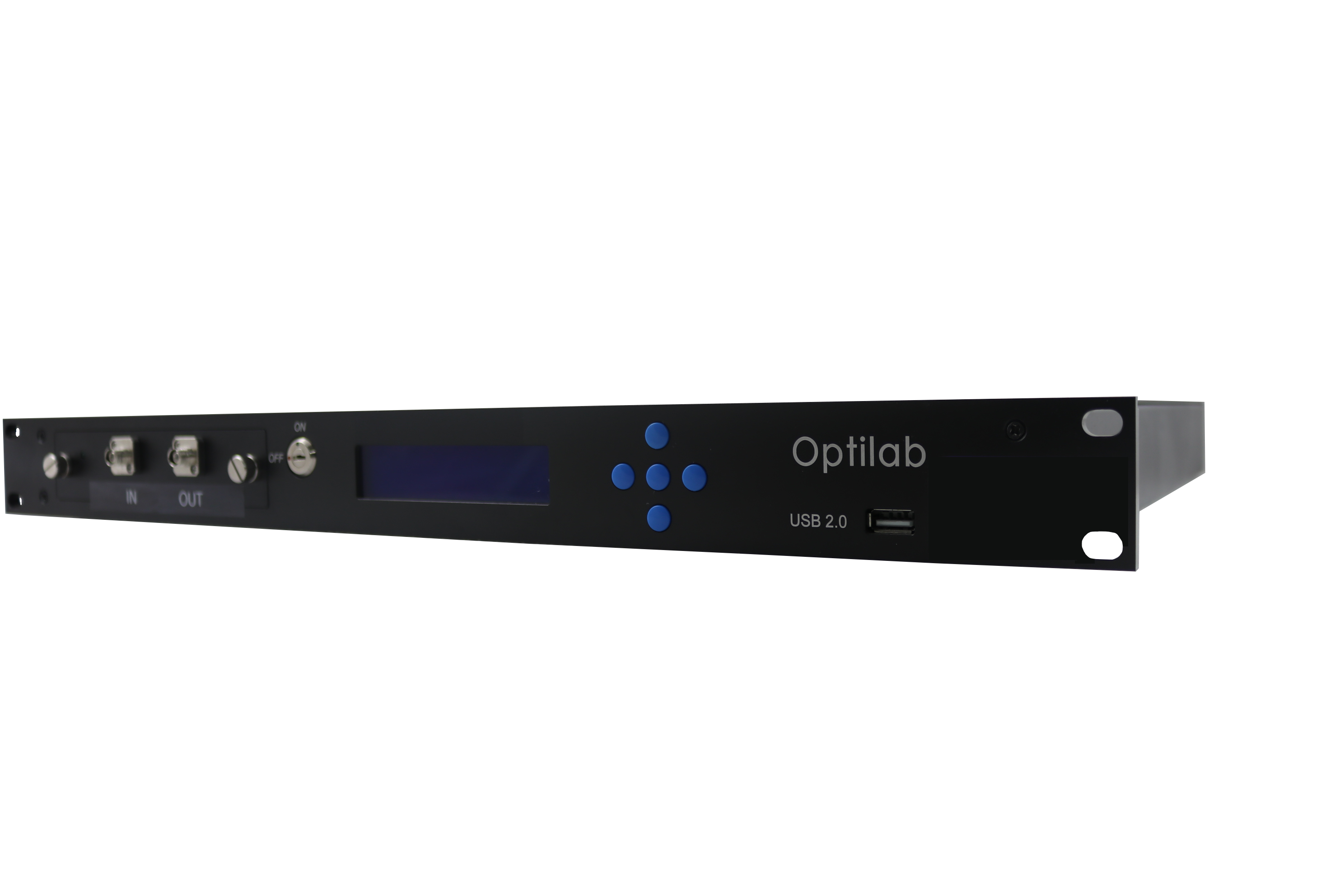

The Optilab EDFA-L-XX-R Erbium-Doped Fiber Amplifier (EDFA) is a dual pump, versatile amplifier designed for optical communication and other generalpurpose optical applications. By using a dual pump laser (980nm & 1480nm) amplifier design with high efficiency, EDFA-L-XX-R provides optical gain up to 35 dB, while maintaining low noise figure (NF) of 5 dB. The EDFA-L-XX-R amplifier produces optical output levels up to +23 dBm with an input power level range from -12 dBm to +7 dBm. Featuring adjustable output level power via ACC through the front panel and software control through USB in a standard 1U rackmount. Contact Optilab for more information.

Features:

• Up to +23 dBm output power • Dual Pump Design • Optical gain up to 35 dB • Input power range: -12 dBm to +7 dBm • Automatic Current Control (ACC) • Software control through USB

Applications:

• Optical Communication • Test and measurement • Pulse Amplification • General-purpose optical amplifier
