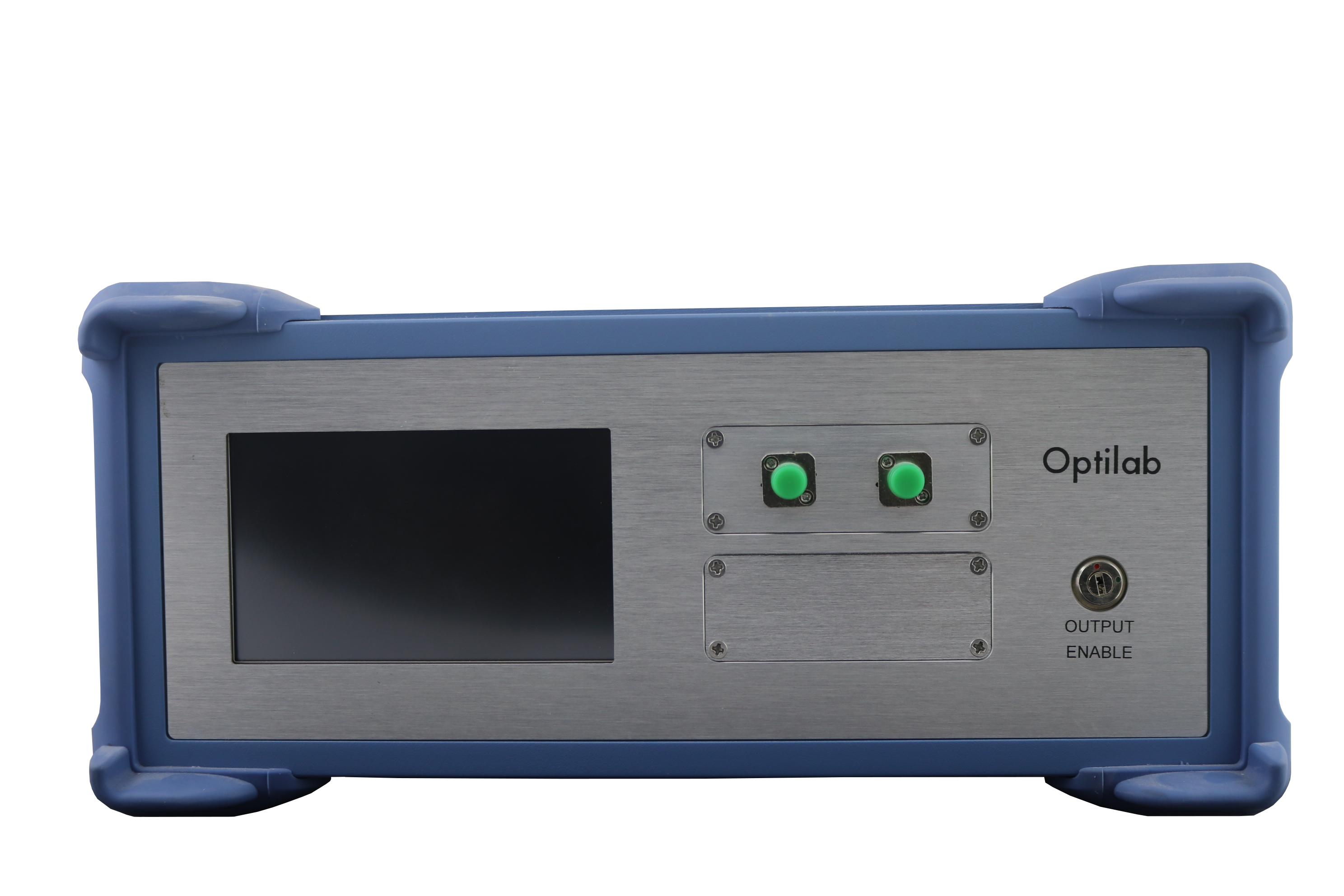

The Optilab EDFA-L-XX-PM-B Erbium-Doped Fiber Amplifier (EDFA) is a versatile amplifier designed for optical communication and other generalpurpose optical applications. EDFA-L-XX-PM-B provides optical gain of up to 30 dB, while maintaining low noise figure (NF) of 5 dB. The EDFA-L-XX-PM-B amplifier produces optical output levels from +17 dBm to +20 dBm with an input power level range from -10 dBm to +7 dBm. This product features adjustable Polarization Maintaining (PM) output level power via ACC through the front panel and software control through USB. Contact Optilab for more information.
• Up to +20 dBm output power • Optical gain up to 30 dB • Software control through USB • Single Pump Amplification • PM Output • Input power level range: -10 dBm to +7 dBm • Automatic Current Control (ACC) standard • LCD digital display and LED status indicators
• Optical Communication • Test and measurement • General-purpose optical amplifier
