Lightwave Modulator for ON OFF Key, up to 50 Gb/s
Lightwave Modulator for ON OFF Key, up to 50 Gb/s

Lightwave Modulator for ON OFF Key, up to 50 Gb/s

VENDOR : optilab

$8,940.00
PART NUMBER : LM-OOK-10-R-PM

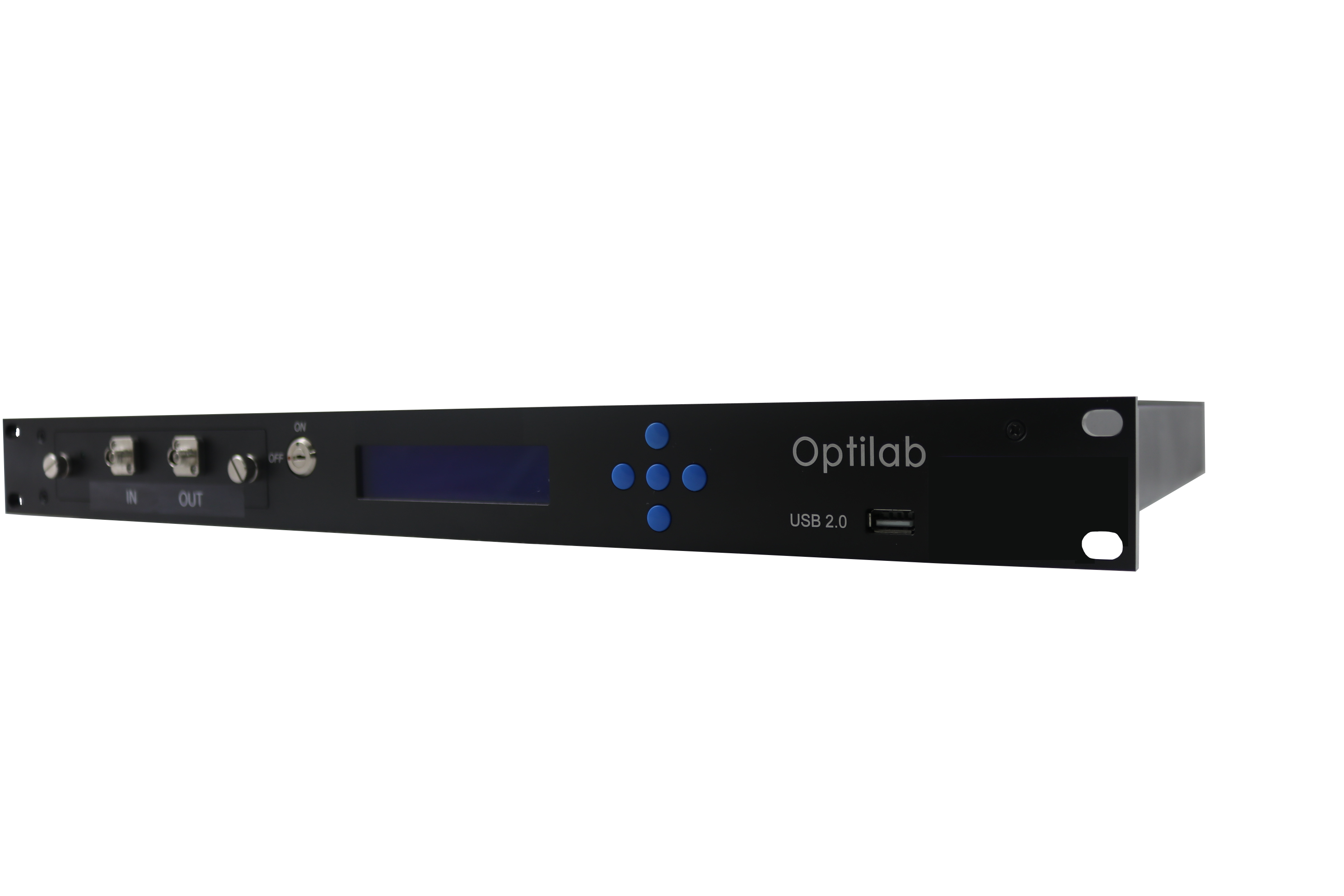

The Optilab LM-OOK-R is a high performance ON OFF Key (OOK) lightwave transmitter designed for Optical Communication up to 50 Gb/s or beyond. The LM-OOK-R incorporates an internal laser source (DFB, tunable laser) which couples into a high speed MZI modulator for OOK modulation, with a broadband modulator driver. The LM-OOK-R has a built-in Automatic Bias Control board which allows for stable long-term operation, with up to 4 bias operating modes. Adjustable RF gain through the front panel interface and LabVIEW software can be performed. Contact Optilab for more information.

Features:
➤ Up to 50 Gb/s bit rate
➤ Integrated modulator driver
➤ Four auto bias modes
➤ Accepts external laser via PM input
➤ Customizable options:
• Laser source (Tunable, DFB)
• Bandwidth (10/20/30/40/50)
• PM output fiber

Applications
➤ Optical communications
➤ Analog transmission
➤ Picosecond pulse generation
➤ Research and development
➤ Test and measurement
