Lightwave Modulator for QPSK/ QAM, Quadrature Phase Shift Key
Lightwave Modulator for QPSK/ QAM, Quadrature Phase Shift Key

Lightwave Modulator for QPSK/ QAM, Quadrature Phase Shift Key

VENDOR : optilab

$15,645.00
PART NUMBER : LM-QPSK-R

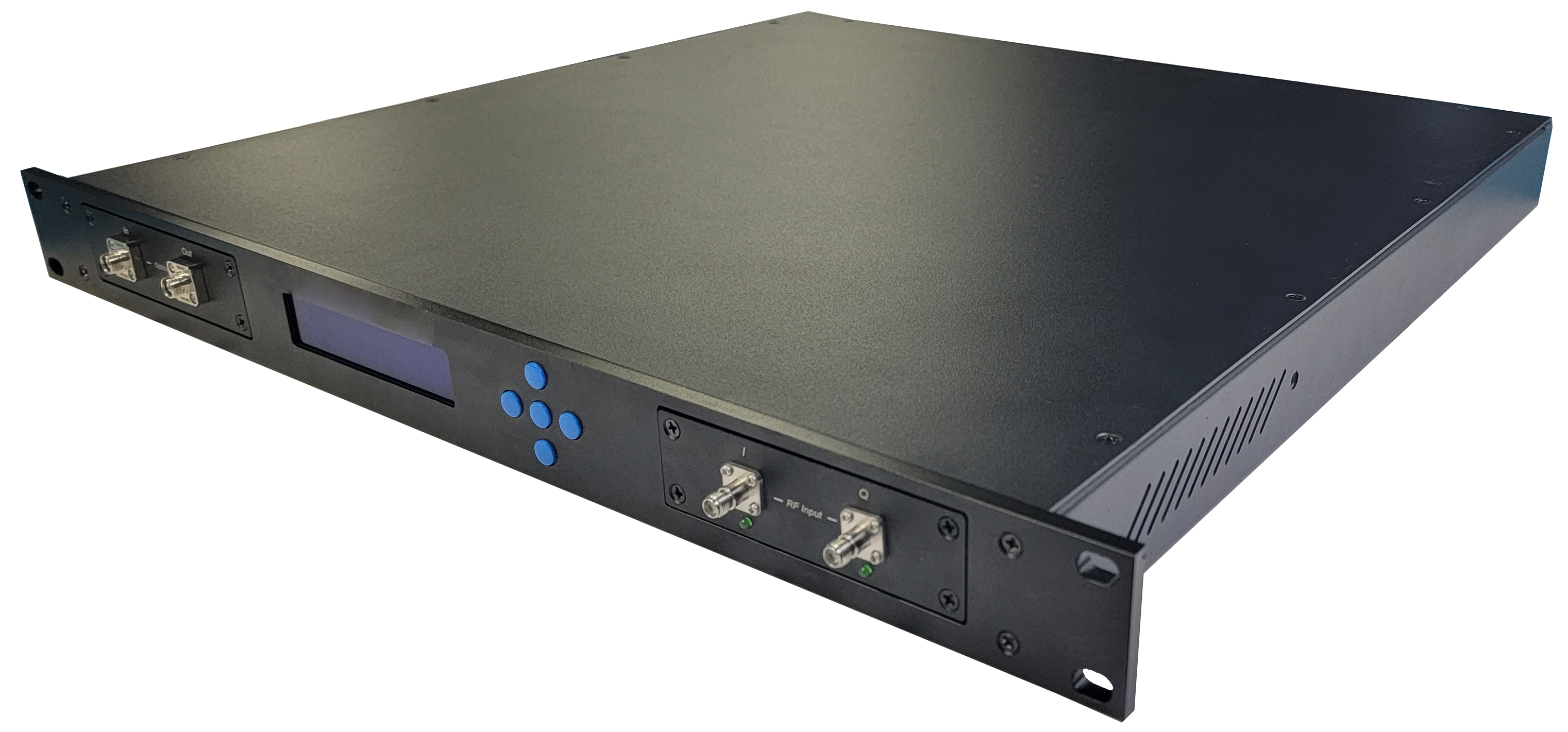

The Optilab LM-QPSK-R is a high-performance Quadrature Phase Shift Key (QPSK) lightwave transmitter designed for optical communication up to 80 Gb/s or beyond using polarization maintaining (PM) optical fiber. The external PM laser source couples into a dual IQ drive speed MZI modulator for QPSK modulation, with dual broadband modulator drivers which provide high-quality, single-ended voltages to drive a QPSK LiNbO3 modulator, with independent control and monitoring on both amplified signals. Adjustable RF gain through the front panel interface and LabVIEW software can be performed. The LM-QPSK-R has a built-in Automatic Bias Controller (ABC) which allows for stable long-term operation. The LM-QPSK-R can also be used for Quadrature Amplitude Modulation (QAM). Contact Optilab for more information.

Features:
▪ Up to 80 Gb/s Data Rate
▪ Integrated Modulator Driver
▪ Automatic Bias Control
▪ Dual IQ modulator
▪ Bandwidth options: 40/60/80 Gb/s
▪ Touch Screen LCD & USB Interface

Applications:
▪ Optical Networks
▪ Coherent Communication
▪ Research and Development
▪ Test and Measurement
