23 GHz Linear InGaAs PIN Photodetector, TQ version
23 GHz Linear InGaAs PIN Photodetector, TQ version
23 GHz Linear InGaAs PIN Photodetector, TQ version
23 GHz Linear InGaAs PIN Photodetector, TQ version

23 GHz Linear InGaAs PIN Photodetector, TQ version

VENDOR : Optilab

$1,595.00
PART NUMBER : PD-23-A-AC-TQ

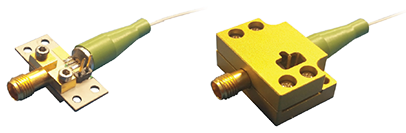

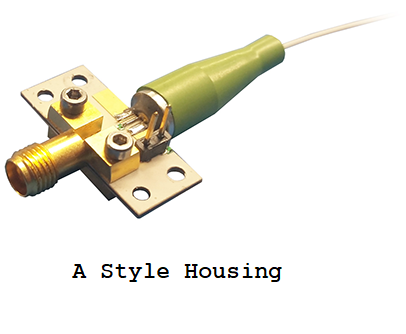

The Optilab PD-23 is a highly linear, 23 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range, and assures a 23 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 40 mW. The PD-23 is available in a standard 2-pin package with SMA RF connector output for ease of assembly, and can be ordered with or without the external protective housing. Contact Optilab for more information.

Features
➤ Bandwidth 60 KHz to 23 GHz
➤ DC to 23 GHz, DC version
➤ Highly linear to 40 mW+ input power
➤ Operating temperature from -55 ºC to +70 ºC
➤ High current handling up to 35 mA
➤ Flat frequency response, ±1 dB
➤ Useful spectral range 850 nm -1650 nm
➤ Hermetically sealed

Application
➤ 23 GHz Analog RF over Fiber
➤ Optically amplified photonics link
➤ RZ and NRZ up to 20 Gb/s
➤ Coherent lightwave systems
➤ Front-End O/E converter for test instrument
