30 GHz Linear InGaAs PIN Photodetector, Multimode Fiber
30 GHz Linear InGaAs PIN Photodetector, Multimode Fiber
30 GHz Linear InGaAs PIN Photodetector, Multimode Fiber
30 GHz Linear InGaAs PIN Photodetector, Multimode Fiber

30 GHz Linear InGaAs PIN Photodetector, Multimode Fiber

VENDOR : optilab

$1,550.00
PART NUMBER : PD-30-MM-A-K-AC

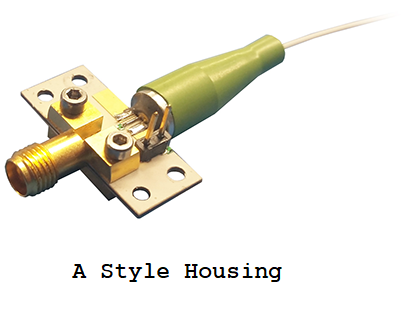

The Optilab PD-30-MM is a highly linear, 30 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range and assures a 30 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 20 mW. The PD-30-MM features 50/125ÎĽm fiber type, available in a standard 2-pin package with SMA- or K-connector output for ease of assembly. Contact Optilab for more information.

Features
➤ 50/125 μm multimode fiber input
➤ Bandwidth 60 KHz to 30 GHz
➤ SMA or K (2.92mm) Connector
➤ AC Coupling (DC coupling optional)
➤ Highly linear to 30 mW+ input power
➤ Operating temperature from -10 ºC to +60 ºC
➤ High current handling up to 35 mA
➤ Flat frequency response, ±1 dB
➤ Useful spectral range 850 nm -1650 nm

Application
➤ 30 GHz Analog RF over Fiber
➤ Optically amplified photonics link
➤ RZ and NRZ up to 20 Gb/s
➤ Coherent lightwave systems
➤ Front-End O/E converter for test instrument

Datasheet
