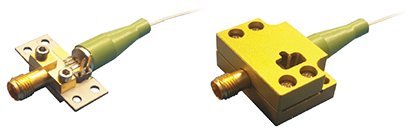

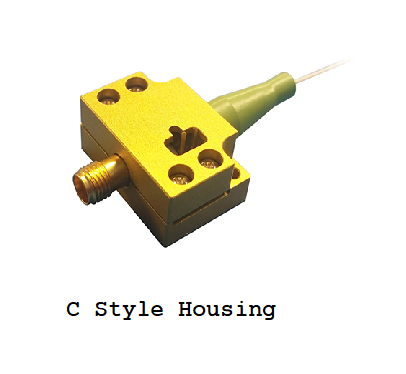

The Optilab PD-30e is a highly linear, 30 GHz bandwidth InGaAs PIN photodetector that is optimized for 1064nm operational wavelength; it is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1030 nm through 1570 nm wavelength range and assures a 30 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 20 mW. The PD-30e is available in a standard 2-pin package with K type RF connector output for ease of assembly and can be ordered with or without the external protective housing. Contact Optilab for more information.

Features
➤ Optimized for 1064nm
➤ 60 kHz to 30 GHz, AC coupled
➤ DC to 30 GHz, DC coupled
➤ Responsivity 0.60 A/W @1060nm
➤ Flat frequency response, ± 1 dB
➤ Highly linear to 20 mW+ input powerHz, DC coupled

Application
➤ 30 GHz Analog RF over Fiber
➤ YDFA amplified photonics link
➤ 1064nm picosecond pulse detection
➤ Coherent lightwave systems
➤ Front-End O/E converter for test instrument
