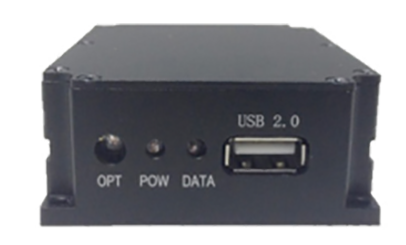

The Optilab PD-30e-M is a 30 GHz photodiode module that is optimized for 1064nm operational wavelength; it is designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using single mode optical. The PD-30e-M can accept input power of up to 20 mW. The PD-30e-M utilizes a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 20 GHz. This compact, cost-effective receiver module can provide users with status monitoring using an on-board processor that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the PD-30e-M RF over fiber receiver module is linked with the LT series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications. Contact Optilab for more information.

Features:
• Optimized for 1064nm
• 60 kHz to 30 GHz, AC coupled
• DC to 30 GHz, DC coupled
• Highly linear to 20 mW+ input power
• No TIA for Intrinsic Phase Linearity
• Responsivity 0.7A/W @1060nm
• Flat frequency response, ± 1 dB

Applications:
• EW Systems
• Broadband Delay-line and Signal Processing
• LIDAR Receivers
• Phased and Interferometric Array Antenna
• Wideband RF Transmission over Fiber
• RF/IF Signal Distribution
• Satcom Microwave Antenna Signal Distribution
