40 GHz Photodiode, Multimode Fiber, Module
40 GHz Photodiode, Multimode Fiber, Module
40 GHz Photodiode, Multimode Fiber, Module

40 GHz Photodiode, Multimode Fiber, Module

VENDOR : optilab

$2,295.00
PART NUMBER : PD-40-MM-M-AC

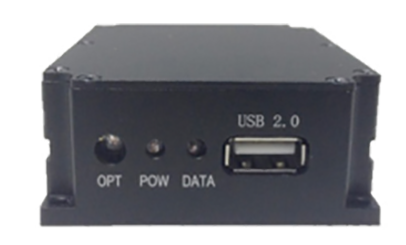

The Optilab PD-40-MM-M is a 40 GHz bandwidth PIN receiver module designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using multimode optical fiber. The PD-40-MM-M can accept input power of up to 10 mW, utilizing a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 40 GHz. This compact, cost-effective receiver module can provide users with status monitoring through the use of an on-board processor that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the PD-40-MM-M RF over fiber receiver module is linked with the LT series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications, go to optilab.com for more details.

Features:
➀ Wide bandwidth 60 KHz to 40 GHz
➀ Highly Linear to 10 mW+ input power
➀ Operating Temperature from -10oC to +50oC
➀ Power and Remote Monitoring via USB port
➀ Flat frequency response, ±1 dB
➀ Useful Spectral Range 850 nm -1650 nm

Applications:
➀ Analog RF over Fiber
➀ Optically Amplified Systems
➀ RZ and NRZ up to 40 Gb/s
➀ LIDAR Measurements
➀ Coherent Lightwave Systems
➀ Front-End O/E Converter for Test Instruments
➀ Satcom microwave antenna signal distribution

Datasheet
