PR-30-Evaluation Board
PR-30-Evaluation Board

PR-30-Evaluation Board

VENDOR : optilab

$655.00
PART NUMBER : PR-30-EVAL

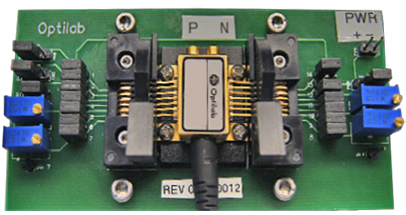

The Optilab PR-30-Evaluation Board is a linear photo receiver designed for analog applications. This compact photo receiver contains a surface coupled coplanar waveguide PIN photodiode and a linear transimpedance amplifier within a hermetically sealed 14-pin butterfly package. With an integrated variable gain amplifier (VGA), PR-30-A offers two gain control modes: Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. In MGC mode, PR-30-Evaluation Board provides a linear conversion gain up to 2000 V/W. At a reduced gain setting, the bandwidth of PR-30-Evaluation Board can be increased up to 35 GHz. In AGC mode, the gain is automatically adjusted to deliver a constant differential output voltage up to 1800 mV. The high conversion gain and low input referred noise makes this linear receiver well suitable for high speed analog applications, as well as digital applications requiring linear response, e.g. QAM-16.
Please contact us at +1 (602) 343-1496 or email sales@oequest.com for more information.
Features:
➤ Adjustable 3 dB Bandwidth up to 35 GHz
➤ High Conversion Gain up to 2000 V/W
➤ Linear TIA with Integrated VGA
➤ 14 pin mini-DIL package
➤ Hermetically Sealed Version Available
➤ MGC and AGC Mode

Applications
➤ PAM-4
➤ Linear Receiver up to 30 GHz
➤ 30 GHz Analog RFoF Link
➤ Low Noise Analog Heterodyne Detection
➤ Transponder and Line Card Designs

User Manual

See Our PR-30-A-HS
