Raman Amplifier, Rackmount, C-Band, 1525nm to 1565nm
Raman Amplifier, Rackmount, C-Band, 1525nm to 1565nm

Raman Amplifier, Rackmount, C-Band, 1525nm to 1565nm

VENDOR : optilab

$10,620.00
PART NUMBER : RA-C5-15-R

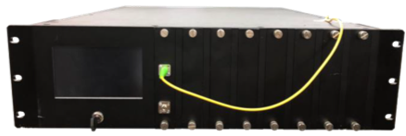

Optilab Raman Amplifier Rackmount Units are designed for distributed Raman amplification in C-band. The RA-C5-15-R unit provides over 15 dB On/Off gain flattened amplification from 1525nm to 1565nm, thus can support up to 50 DWDM channels. Each of the two pump channels is configured with two high power pump laser diodes and one polarization beam combiner (PBC). The pump wavelengths are 1431 and 1455 nm. The unit includes micro-controller based laser current control circuitry for enhanced stability and reliability. RA-C4-15-R is an ideal amplifier for high channel count DWDM 40G/100G transmission and fiber sensor systems. It is equipped with LCD touch screen and LabVIEW (TM) remote user interface for easy operation. Contact Optilab for more information.

Features:
• 1525 nm - 1565 nm
• Over 15 dB On/Off Gain
• Gain flatness of < ±1.5 dB
• Excellent Stability
• Up to 50 DWDM Channels
• Touch Screen LCD & USB Interface

Use In:
• Long Haul/Ultra-Long Haul Systems
• Long Repeaterless Links
• Low Latency Links
• Multi-Channel DWDM Networks
• 40/100 Gbps Transmission

Datasheet
