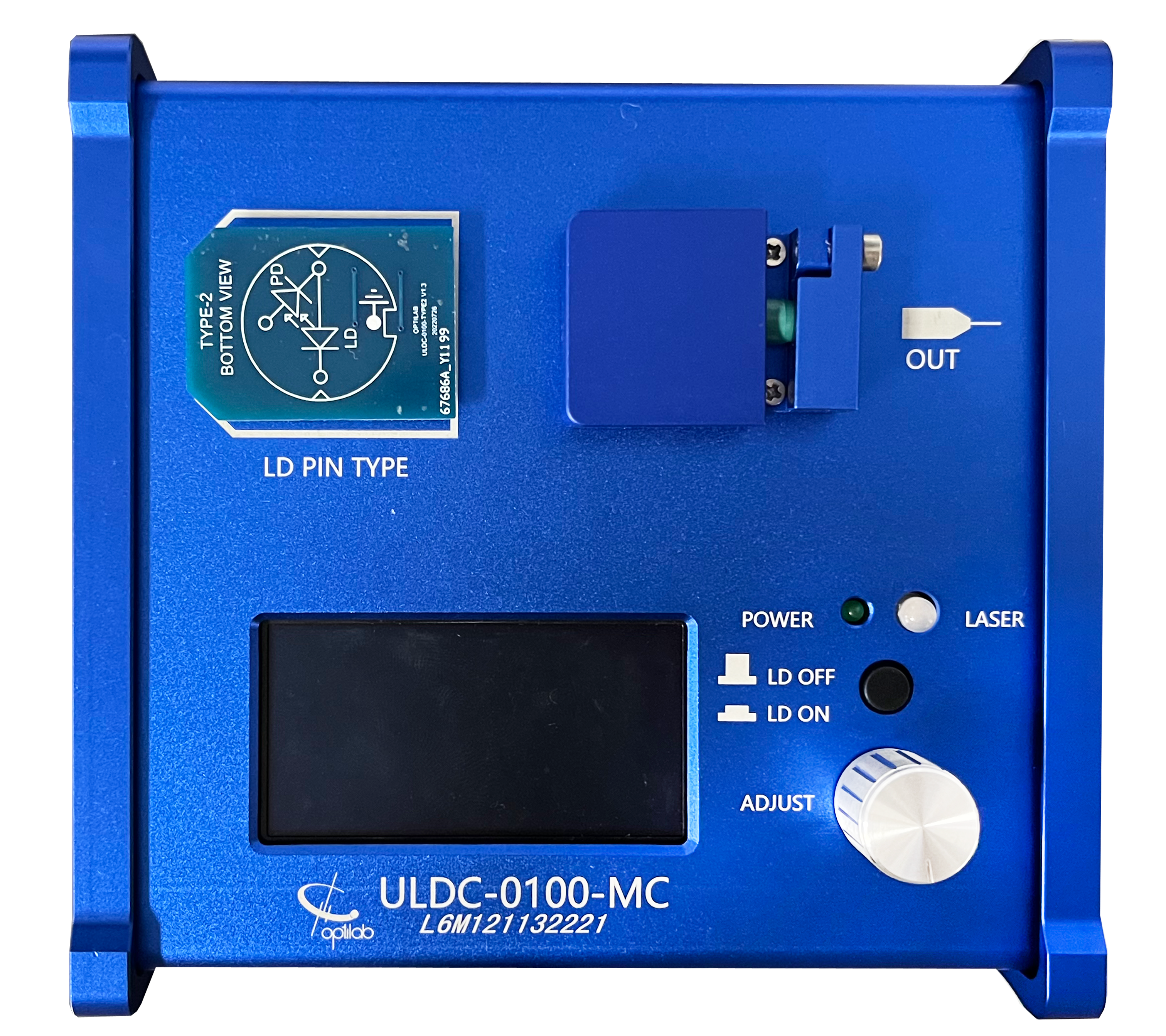

The Optilab ULDC-0100-MC is a fully integrated Universal Laser Diode Controller designed for the coaxial laser diode. This compact, easy to use laser diode driver module operates under a single + 5 V DC power supply. ULDC-0100-MC comes with a built in OLED display and a USB port for external PC control. This driver is compatible with both type 1 and type 2 pinout by switching the pinout daughter boards. The laser diode can be driven in a range of 0-100mA with a setting resolution of 1 mA and the internal PD current can be monitored.

FEATURES:

• Coaxial Socket with Magnetic Clip
• Up to 100 mA LD Current
• PD Current Monitor
• On Board OLED Display
• USB Port for External PC Control
• Compatible with Type 1 & 2 Pinout

USE IN:

• Laser Diode Characterization
• Research and Development
• Laboratory Use
• Failure Analysis

DATASHEET
