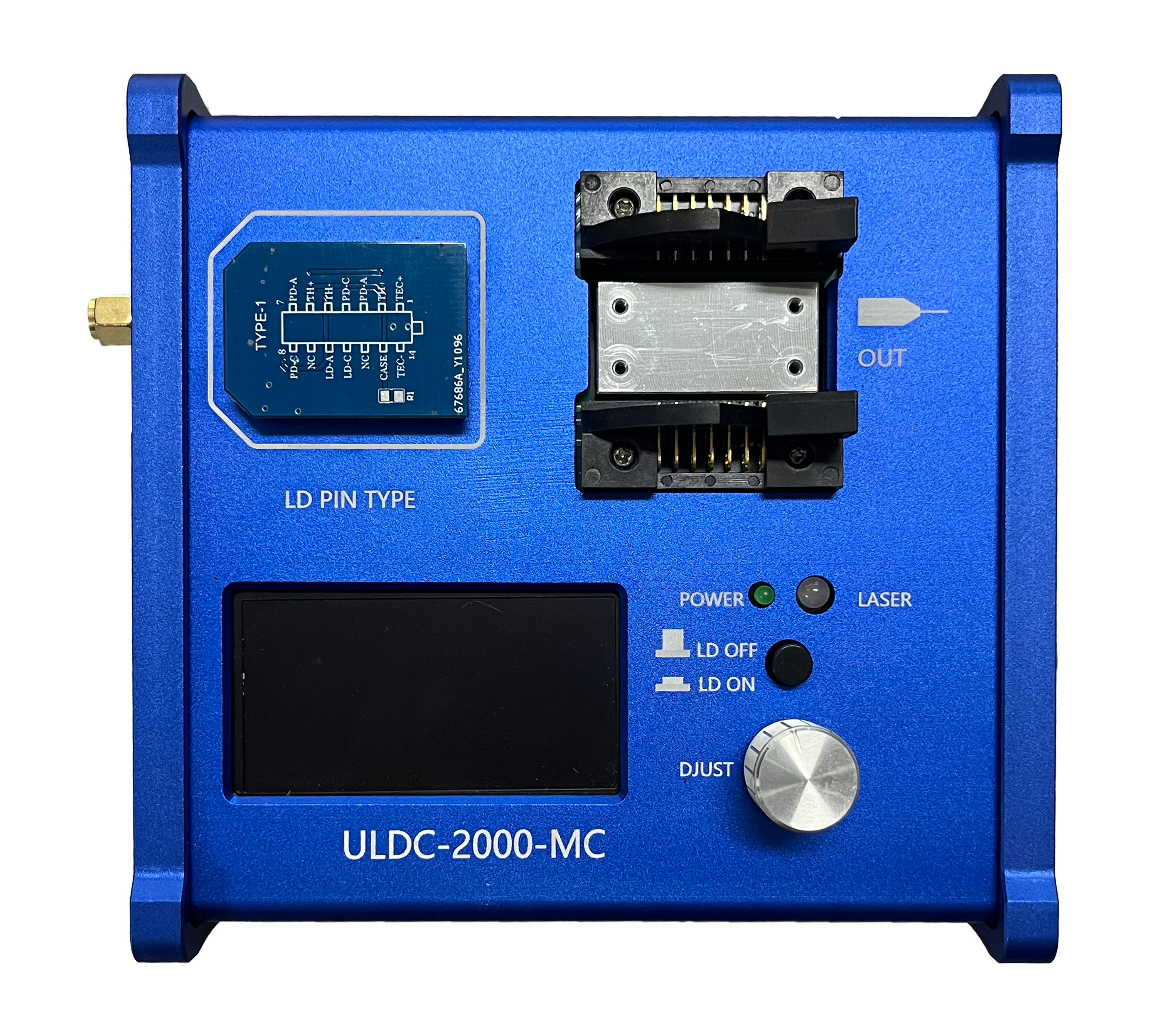

The Optilab ULDC-2000-MC is a fully integrated Universal Laser Diode Controller designed for butterfly laser diode. This compact, easy to use laser diode driver module operates under a single + 12 V DC power supply. ULDC-2000-MC offers LD current and temperature control that comes with a built in OLED display and a USB port for external PC control. The module is equipped with an adapter board, thus making it compatible with butterfly LD module for any laser manufacturers by switching the daughter boards provided in the package. It features LD current range of 0-1000mA with a setting resolution of 1 mA and temperature range of 10 ℃-40 ℃ with a setting resolution of 0.1 ℃.

Features:

• Up to 1000 mA LD Current
• 2.3 A TEC Current
• ZIF Socket
• On Board OLED Display
• USB Port for External PC Control
• Compatible with Arbitrary Pinout

Applications:

• Laser Diode Characterization
• Research and Development
• Laboratory Use
• Failure Analysis

Datasheet
